LOW-VOLTAGE-CU-XLPE-PVC-POWER-CABLE

Details

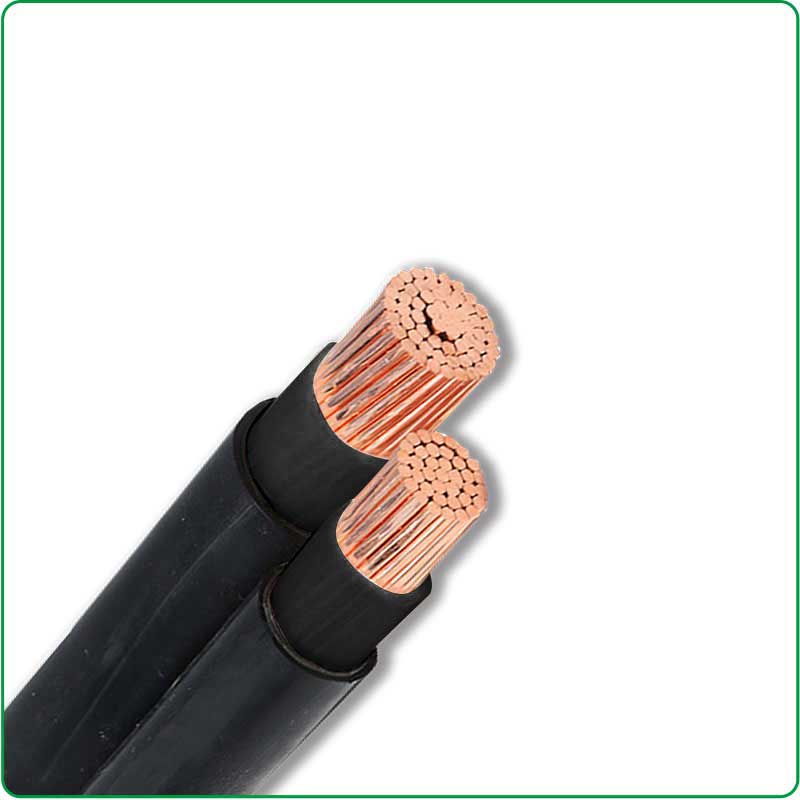

Oxygen-Free Copper Single Core XLPE Insulated Power Cable

Our single core cable features high-purity oxygen-free copper conductor and XLPE insulation, providing low resistance and high conductivity. It has excellent heat resistance, aging resistance and mechanical properties. Widely used for power supply, control circuits and equipment wiring. Ideal for industrial projects, construction and places requiring reliable single-core power transmission.

Construction

Description:	CU/XPLE/PVC Copper Power Cable
Rated Voltage	0.6/1kV
Conductor Material	Oxygen-Free Copper (Class 1/2)
Insulation Material	XLPE (Cross-Linked Polyethylene)
Sheath Material	PVC (Black) / LSZH (Optional)
Number of Cores	1 Core
Cross-Section Range	1.5mm² – 800mm²
Standard Color	Insulation: Red/Black; Sheath: Black
Operating Temp.	Max. 90°C (Continuous); 130°C (Emergency); 250°C (Short-Circuit, ≤5s)
Installation Temp.	≥ -5°C (Pre-heat if below 0°C)
Bending Radius	≥ 15 × Cable Outer Diameter
Test Voltage	AC 3.5kV / 5min

Technical Data

0.6/1kV-XLPE Single Core Copper Cable 0.6/1kV Power Cable
No. of cores and nominal cross section	Conductor Structure (No./Dia.)	Insulation Thickness	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	(A, Air)
1X1.5	1/1.38	0.7	5.6	43	12.1	20
1X2.5	1/1.78	0.7	6.2	65	7.41	28
1X4	1/2.25	0.7	7.0	95	4.61	37
1X6	1/2.76	0.7	7.8	135	3.08	48
1X10	7/1.35	0.7	9.2	215	1.83	65
1X16	7/1.7	1.0	11.0	320	1.15	85
1X25	7/2.14	1.0	13.0	485	0.727	113
1X35	7/2.52	1.0	14.5	665	0.524	138
1X50	19/1.78	1.2	16.5	925	0.387	173
1X70	19/2.14	1.2	19.0	1280	0.268	215
1X95	19/2.52	1.4	21.5	1750	0.193	260
1X120	37/2.03	1.4	24.0	2200	0.153	300
1X150	37/2.25	1.6	26.5	2750	0.124	340
1X185	37/2.52	1.6	29.5	3400	0.0991	385
1X240	61/2.25	1.7	33	4400	0.0754	450
1X300	61/2.52	1.8	36.5	5500	0.0601	515

Related Products:

XLPE Single Core Copper Cable 0.6/1kV Power Cable View More

CU/XLPE/PVC R2V R02V YJV XLPE insulated power cables View More

RE1ME1-K 1.8/3kv XLPE Insulated LSZH Sheath Cable - IEC 60502 Compliant Flexible Power Cable View More

LSZH Flexible Power Cable RE1ME1-K 0.6/1kV, XLPE Insulated, Designed for Fixed Wiring and High Fire Safety in Accordance with IEC 60502-1 View More

CU/XLPE/PVC YJV Copper Conductor Insulated Polyvinyl Chloride Sheathed Power Cable Electric Cable View More

Factory Customization Multi-Core Cable 22 AWG 2 Conductor Shielded Wire Cable for Instrument View More

REZ1-K 1.8/3KV Cable - XLPE LSZH Flexible Power Cable, IEC 60502-1, Fixed Installation View More

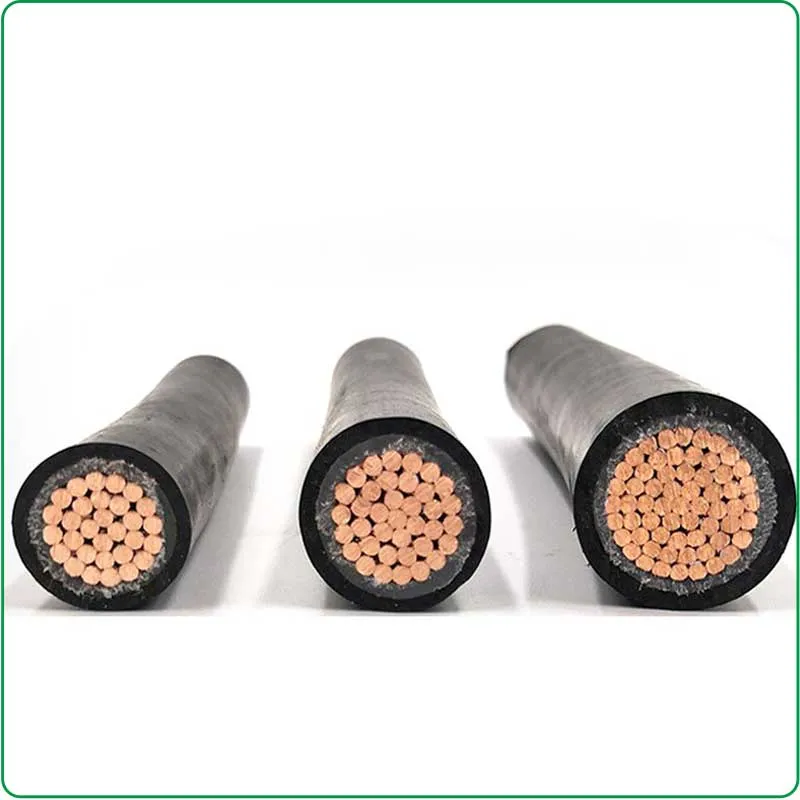

CU XLPE PVC Power Cable Manufacturer, Custom Size Available for Global Projects
