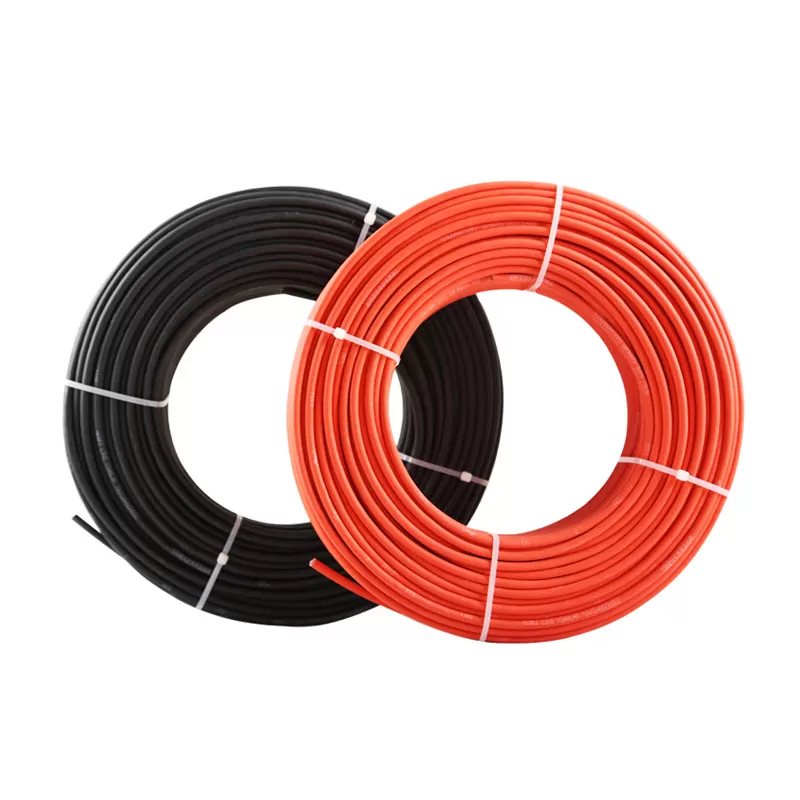

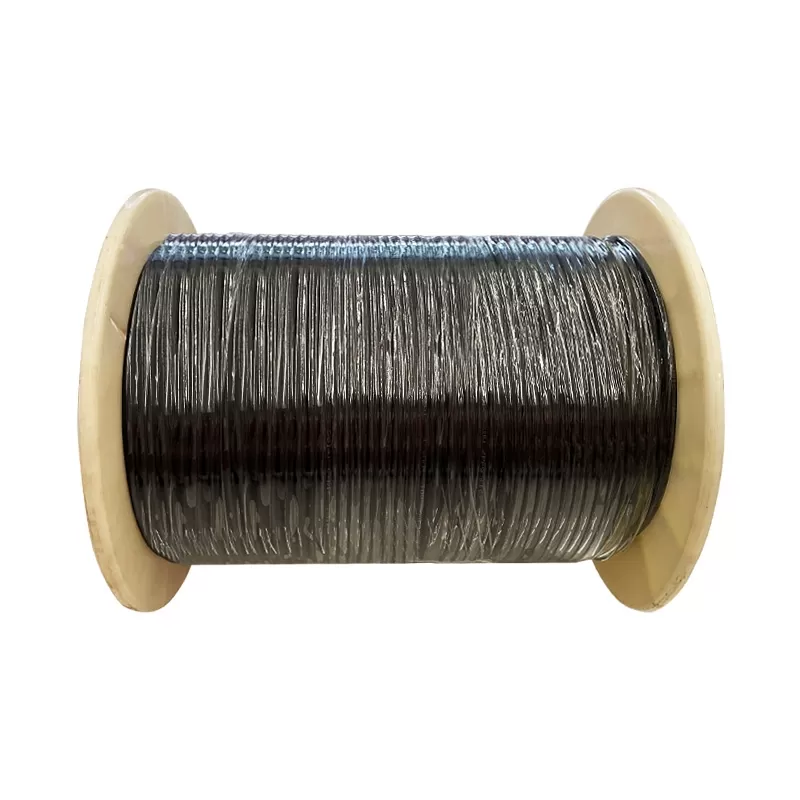

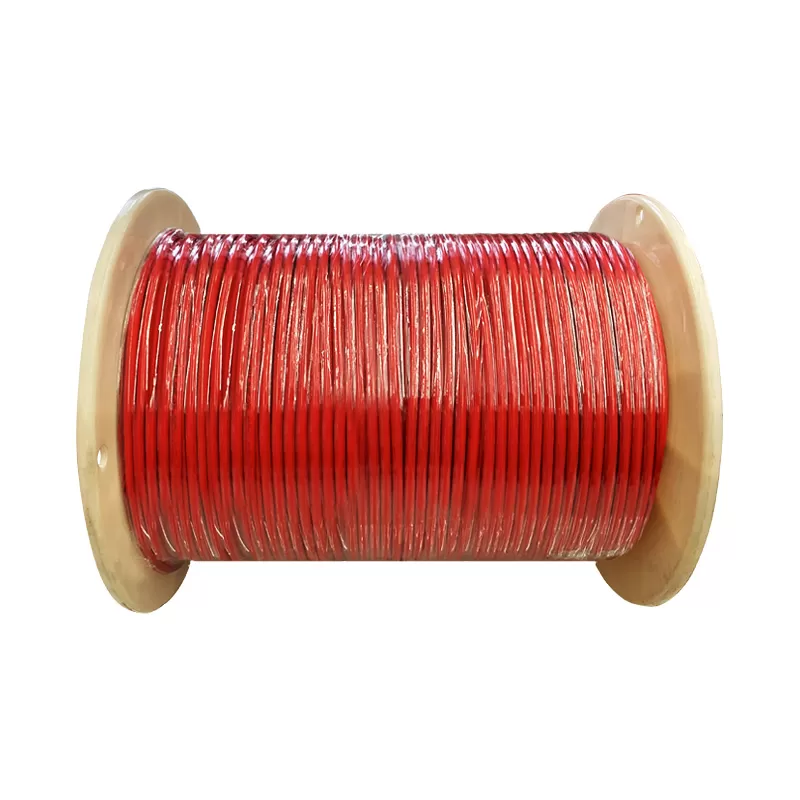

Solar Cable
Solar Cable
Applications
Solar cables have various applications in solar power systems and related industries. Here are some of the primary applications:
● Photovoltaic (PV).
● Residential Solar Installations
● Commercial and Industrial Solar Systems
● Solar Street Lighting
● Off-Grid Solar Systems.
● Solar Water Pumping
● Solar Thermal Systems
Description : Solar Cables – double insulated.
Suitable for use indoor or outdoor for connection between solar panels or between panels and invertor.
Our PV cables meet TUV certification and can be manufactured in both H1Z2Z2-K and PV1-F.
For any more information or advice please contact the office on 0086-18832134509 (WhatsApp/WeChat)
Details
Overview Solar cable is designed especially for the interconnection of the various elements in photovoltaic systems. It provides the optimal connection between the solar cells and from the solar cells to the inverter or DC main cable. This Solar cable has been tested to last 25 years. It is also ozone-resistant, UV-resistant and tested for durability according to EN 60216, demonstrating its high quality and suitability for purpose. Due to its halogen free, flame retardant and low smoke properties, the cable will not give out toxic emissions in the event of a fire.
Description: PV Cable

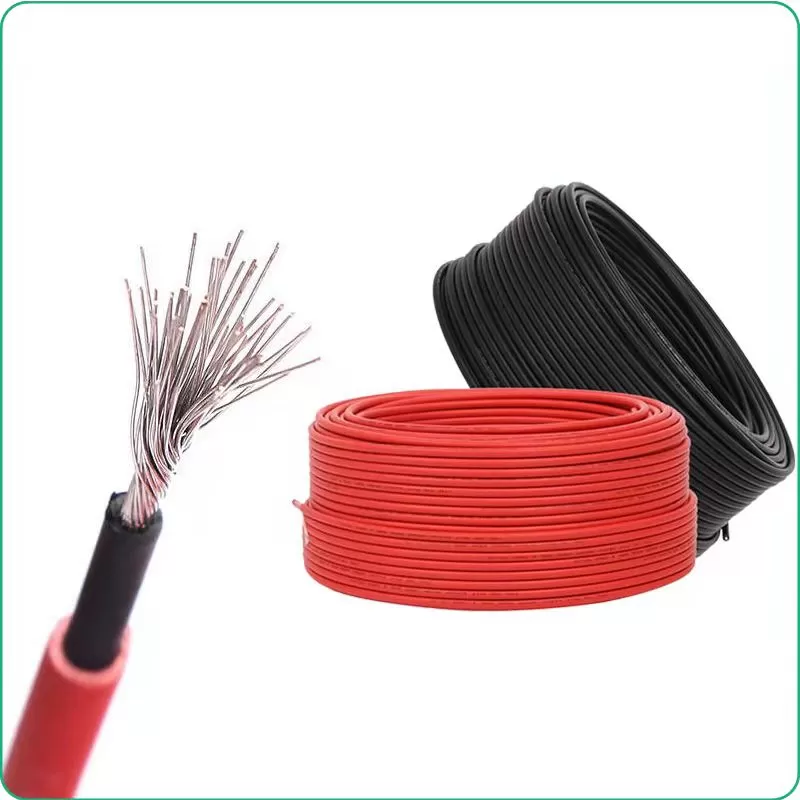

Conductors: Tinned fine copper strands acc.to IEC60228 Class 5
Insulation: XLPO,flame retardant,halogen free electron-beam cross-linked.
Insulation Colour: White or Black

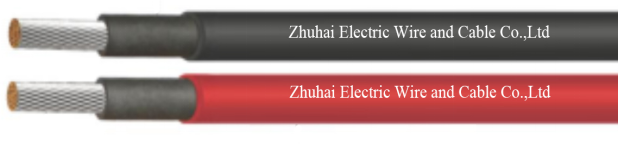

Outer Sheath: XLPO,flame retardant,halogen free electron-beam cross-linked
Colour of Sheath: Red & Black
Voltage Rating (Uo/U): DC1500V, Max. 1.8kV
Test Voltage: AC6.5kV 50Hz 5 minutes
Short Circuit Temperature(5 seconds maximum duration): 250℃（XLPE insulation)
| SOLAR CABLE | ||||
| Cross Section | Conductor ∅ | Outer ∅ | Current-carrying capacity at 60℃ | Conductor resistance at 20℃ |
| mxmm² | mm | mm | A | KΩ/km |
| 1x1.5 | 1.4 | 4.2 | 30 | 13.7 |
| 1x2.5 | 1.8 | 5 | 42 | 8.21 |
| 1x4 | 2.2 | 5.2 | 55 | 5.09 |
| 1x6 | 2.8 | 5.8 | 70 | 3.39 |
| 1x10 | 4.0 | 7.5 | 98 | 1.95 |
| 1x16 | 5.0 | 8.9 | 132 | 1.24 |
| 1x25 | 6.2 | 10.9 | 176 | 0.795 |
| 1x35 | 7.3 | 12.8 | 218 | 0.565 |
| 1x50 | 8.8 | 14.3 | 280 | 0.393 |
| 1x70 | 11.0 | 16.5 | 350 | 0.277 |
| 1x95 | 12.3 | 18.2 | 410 | 0.210 |
| 1x120 | 14.1 | 20.2 | 480 | 0.164 |
1. Photovoltaic (PV) Systems: PV1-F is designed specifically for photovoltaic systems, meeting TÜV 2 Pfg 1169 and IEC 62930 standards. Its 1500V DC rating, ozone resistance, and >25-year lifespan make it ideal for all types of PV installations.
2. Residential Solar Installations: For home rooftops, PV1-F provides safe insulation, UV/weather resistance, and compact routing thanks to its Class 5 flexible copper conductor. This reduces installation difficulty and ensures system safety.
3. Commercial and Industrial Solar Systems: Large solar plants (100kW–10MW) benefit from PV1-F’s low conductor resistance, thermal stability, and halogen-free insulation, which improves system efficiency and reduces maintenance.
4. Solar Street Lighting: In exposed environments, PV1-F's abrasion resistance, wide operating temperature range (-40°C to +90°C), and flame-retardant construction offer long-term reliability for pole-to-panel DC wiring.
5. Off-Grid Solar Systems: PV1-F is suitable for rugged, remote installations requiring flexible deployment, mechanical protection, and resistance to chemical agents, often critical in off-grid locations.
6. Solar Water Pumping: For solar pumping setups in agriculture, PV1-F ensures waterproof insulation, oil resistance, and vibration durability, making it ideal for dynamic or semi-submerged environments.
7. Solar Thermal Systems (Hybrid DC wiring): When used in hybrid systems (thermal + PV), PV1-F can handle high ambient temperatures and long cable runs without signal loss or insulation breakdown.
Q1: Is PV1-F cable suitable for 1500V solar systems?
Yes, our PV1-F cables are TÜV certified up to 1500V DC, meeting the requirements of most utility and commercial-scale solar installations.
Q2: What’s the expected lifespan of your solar DC cable?
Our PV1-F cables are rated for 25+ years, UV resistant and tested for extreme outdoor conditions.
Q3: Can you provide customized lengths and labeling?
Yes, we offer OEM services with custom length cutting, insulation color, printing, and packaging.
