Special cables can be made according to your requirement.Welcome to negotiate OEM with us!
For any more information or advice, please contact the office on 0086-18832134509 (WhatsApp/WeChat)
Details

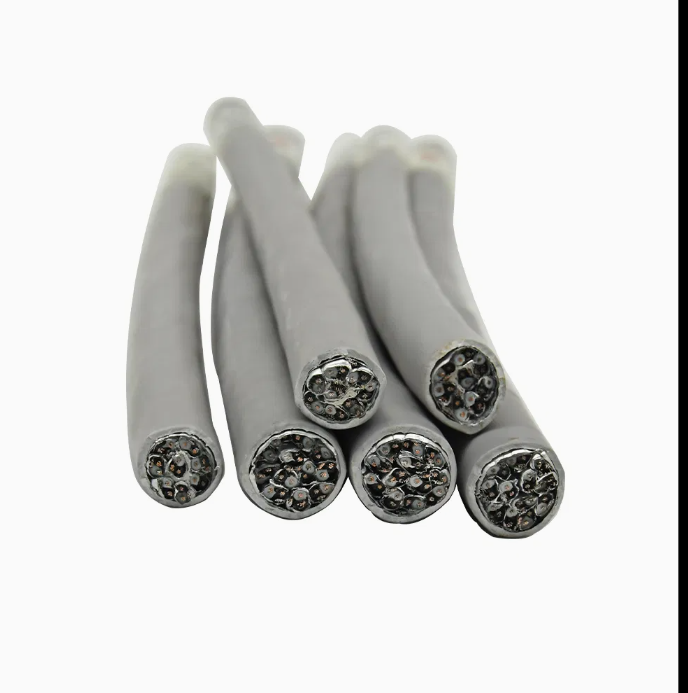

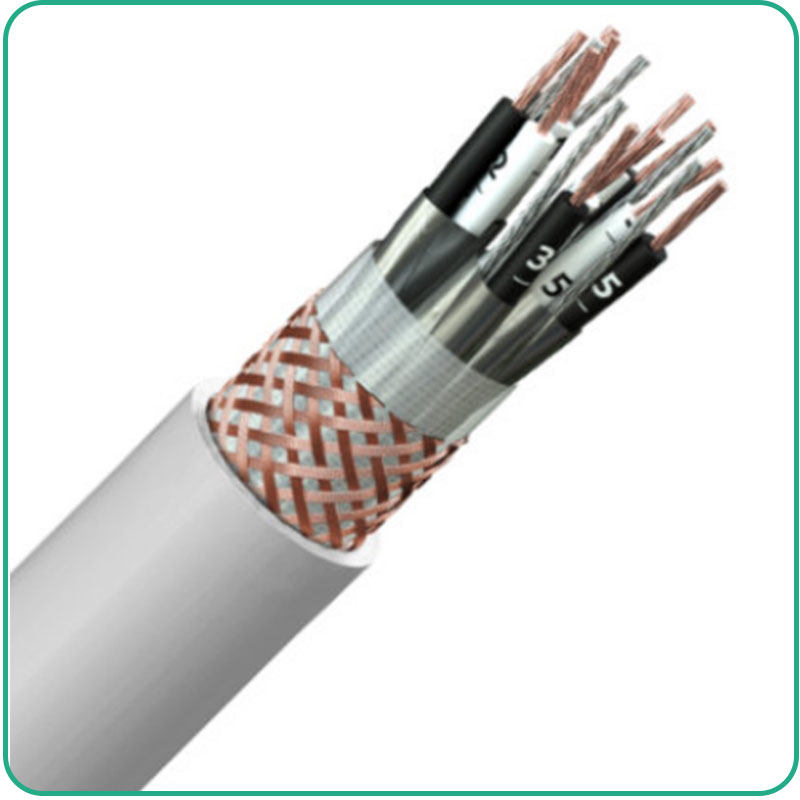

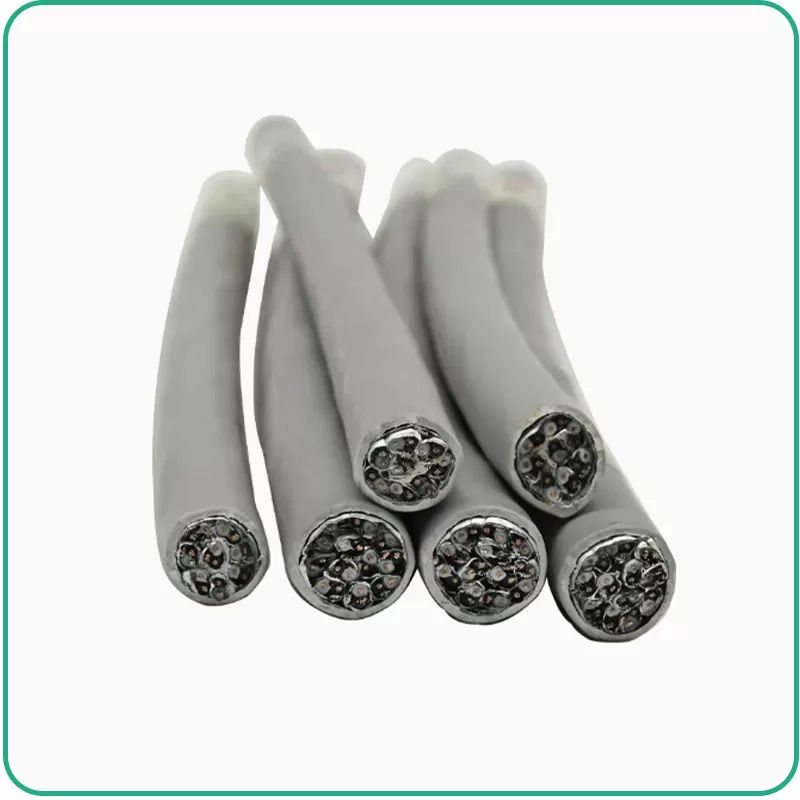

Overview Professional Multi-Pair Cable Instrument Cable

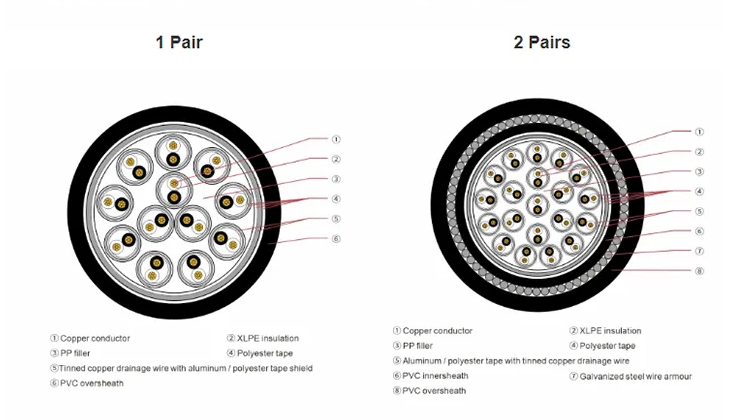

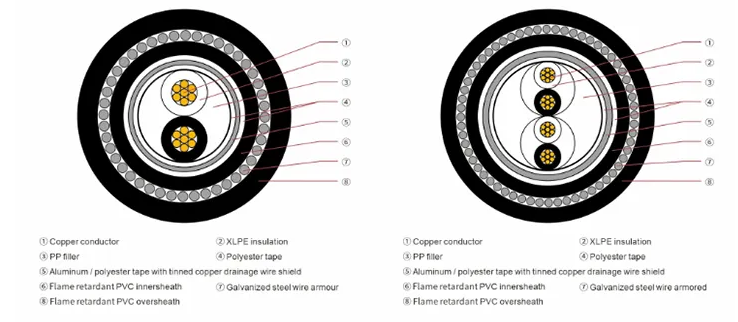

CONSTRUCTION
Pairs: 1-61 pairs
Standard : IEC 60228 or BS 6360
Conductor : Stranded copper conductor
Insulation : PE/XLPE/PVC
Armoring: SWA/STA/Galvanized steel wire or others
Sheath: PVC(polyvinyl chioride)
Pairing: two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100mm.
Overall screening: Accumulated pairs screened with aluminum/mytar tape, helically applied with the metallic side down
in electrical contact with a tinned annealed copper drain wire 0.5mm2
Individual screening: each pairs screened with aluminum/mytar tape, helically applied with the metallic side down in
electrical contact with a tinned annealed copper drain wire 0.5mm2
Cabling: twisted pairs are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation.
TECHNICAL DATA
| 300/500V Instrument Cable | ||||||||
| No. of Pairs | Stranding Dia | Mom. Insulation thickness | Nom. bedding thickness | Approx. dia.over bedding | Nom. Dia.of armour wire | Nom. Outer sheath thickness | Approx. Overall Dia | Weight Approx |
| mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 2X1.5 | 7/0.52 | 0.6 | 1.2 | 13.6 | 1.25 | 1.6 | 19.3 | 635 |
| 5X1.5 | 7/0.52 | 0.6 | 1.3 | 17.7 | 1.6 | 1.7 | 24.3 | 1070 |
| 10x1.5 | 7/0.52 | 0.6 | 1.5 | 23.9 | 1.6 | 19 | 30.9 | 1605 |
| 15x1.5 | 7/0.52 | 0.6 | 1.7 | 28 | 2.0 | 2.0 | 36.0 | 2280 |
| 20x1.5 | 7/0.52 | 0.6 | 1.7 | 32 | 2.0 | 2.1 | 39.9 | 2730 |
| 30x1.5 | 7/0.52 | 0.6 | 2.0 | 38.6 | 2.5 | 2.5 | 48.5 | 4075 |
| 50X1.5 | 7/0.52 | 0.6 | 2.2 | 48.9 | 2.5 | 2.7 | 59.3 | 5765 |
