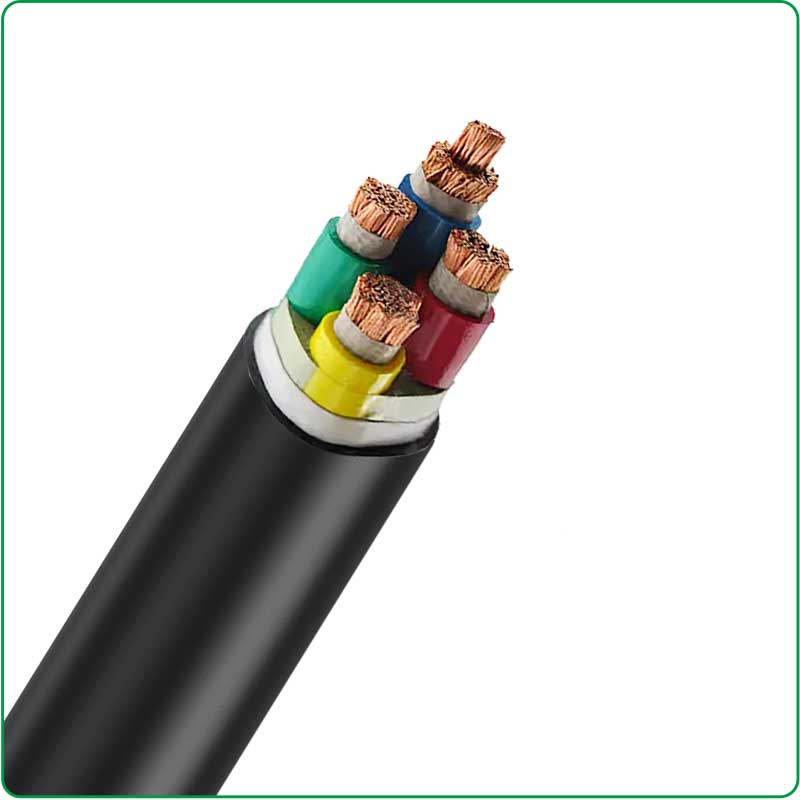

CU/XLPE/PVC REZ1-K Cable

Details

Overview

Zhuhai Single-Core REZ1-K cable also known as RZ1-K cable

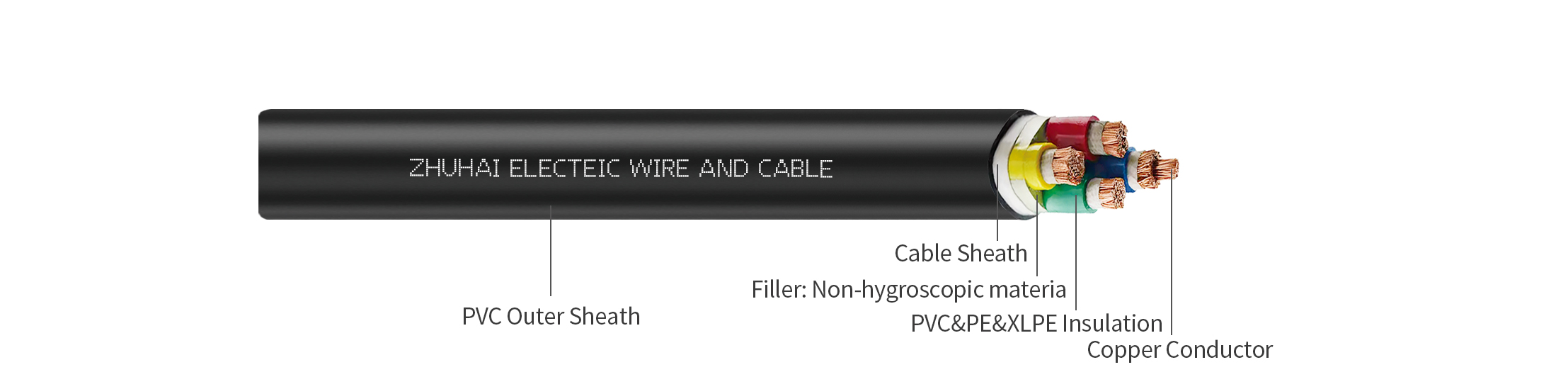

CONSTRUCTION

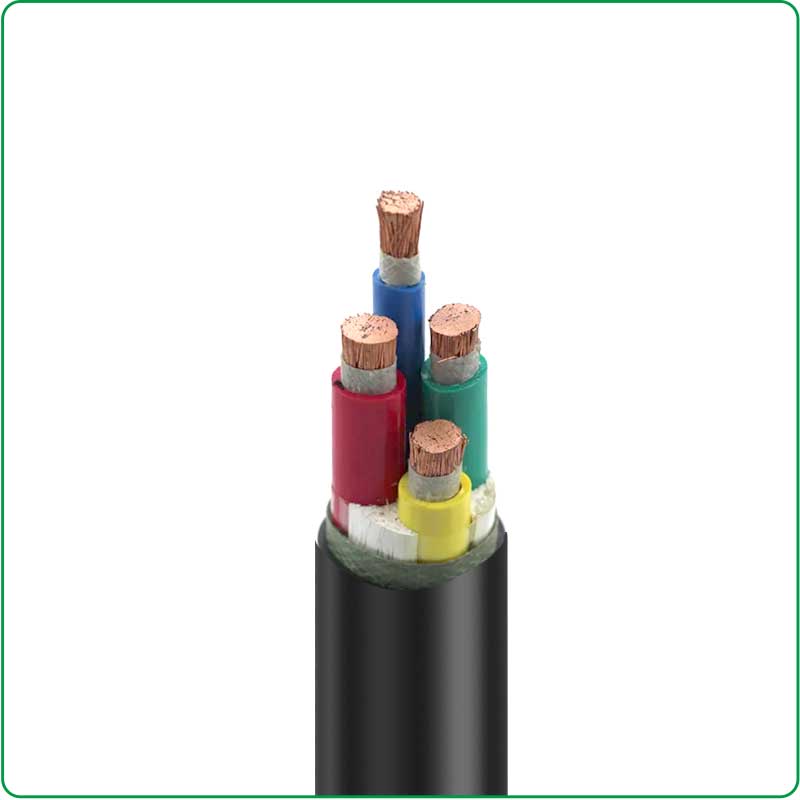

REZ1-K 1.8/3KV Cable - XLPE LSZH Flexible Power Cable, IEC 60502-1, Fixed Installation

Rated Voltages: 0.6/1KV, 1.8/3KV;

Conductor Type: Class 5 Flexible Stranded Copper Conductor;

Insulation Material: XLPE (Cross-Linked Polyethylene);

Sheath Material: LSZH (Low Smoke Zero Halogen);

Executive Standards: IEC 60502-1, EN 50575 (CPR);

Application Scenarios: Fixed Installation (Indoor/Outdoor), Environments with High Fire Safety Requirements.

TECHNICAL DATA

Single-Core REZ1-K 0.6/1KV (Core Parameters)

Nominal Cross-Section (mm²) (Keyword: Cross-Section)	Conductor Resistance (max Ω/km @ 20℃) (Keyword: Conductor Resistance)	Insulation Thickness (mm) (Keyword: Insulation Thickness)	Sheath Thickness (mm) (Keyword: Sheath Thickness)	Approximate Outer Diameter (mm) (Keyword: Outer Diameter)	Approximate Weight (kg/km) (Keyword: Weight)
1.5	11.49	0.7	1.4	5.8	46
2.5	6.90	0.7	1.4	6.4	65
4	4.31	0.7	1.4	7.0	88
6	2.87	0.7	1.4	7.6	112
10	1.72	0.7	1.5	8.8	178
16	1.08	0.8	1.6	10.2	260
25	0.69	0.9	1.7	12.0	405
35	0.49	1.0	1.8	13.6	530
50	0.34	1.1	1.9	15.6	720
70	0.25	1.2	2.0	18.0	980
95	0.18	1.3	2.2	20.6	1290
120	0.14	1.4	2.3	22.8	1610
150	0.11	1.5	2.4	25.0	1980
185	0.09	1.6	2.5	27.6	2410
240	0.07	1.7	2.6	31.0	3050
300	0.06	1.8	2.8	34.4	3720

Single-Core REZ1-K 1.8/3KV (Core Parameters)

Nominal Cross-Section (mm²) (Keyword: Cross-Section)	Conductor Resistance (max Ω/km @ 20℃) (Keyword: Conductor Resistance)	Insulation Thickness (mm) (Keyword: Insulation Thickness)	Sheath Thickness (mm) (Keyword: Sheath Thickness)	Approximate Outer Diameter (mm) (Keyword: Outer Diameter)	Approximate Weight (kg/km) (Keyword: Weight)
1.5	11.49	1.0	1.5	6.5	58
2.5	6.90	1.0	1.5	7.2	82
4	4.31	1.0	1.5	7.8	108
6	2.87	1.0	1.6	8.5	138
10	1.72	1.2	1.7	9.8	205
16	1.08	1.4	1.8	11.5	302
25	0.69	1.6	1.9	13.5	465
35	0.49	1.8	2.0	15.2	610
50	0.34	2.0	2.2	17.5	820
70	0.25	2.2	2.4	20.2	1120
95	0.18	2.4	2.6	23.0	1480
120	0.14	2.6	2.8	25.5	1850
150	0.11	2.8	3.0	28.2	2280
185	0.09	3.0	3.2	31.0	2780
240	0.07	3.2	3.4	34.8	3520
300	0.06	3.4	3.6	38.5	4350

Typical Specification Table for Multi-Core REZ1-K 0.6/1KV (Core Parameters)

Number of Cores (Keyword: Number of Cores)	Nominal Cross-Section (mm²) (Keyword: Cross-Section)	Approximate Outer Diameter (mm) (Keyword: Outer Diameter)	Approximate Weight (kg/km) (Keyword: Weight)
2×	1.5	8.6	95
2×	2.5	9.4	130
2×	4	10.4	175
2×	6	11.4	230
3×	1.5	9.2	125
3×	2.5	10.2	175
3×	4	11.4	235
3×	6	12.6	305
4×	1.5	10.0	155
4×	2.5	11.2	220
4×	4	12.6	295
5×	1.5	11.0	190

Typical Specification Table for Multi-Core REZ1-K 1.8/3KV (Core Parameters)

Number of Cores (Keyword: Number of Cores)	Nominal Cross-Section (mm²) (Keyword: Cross-Section)	Approximate Outer Diameter (mm) (Keyword: Outer Diameter)	Approximate Weight (kg/km) (Keyword: Weight)
2×	1.5	9.5	115
2×	2.5	10.5	155
2×	4	11.8	210
