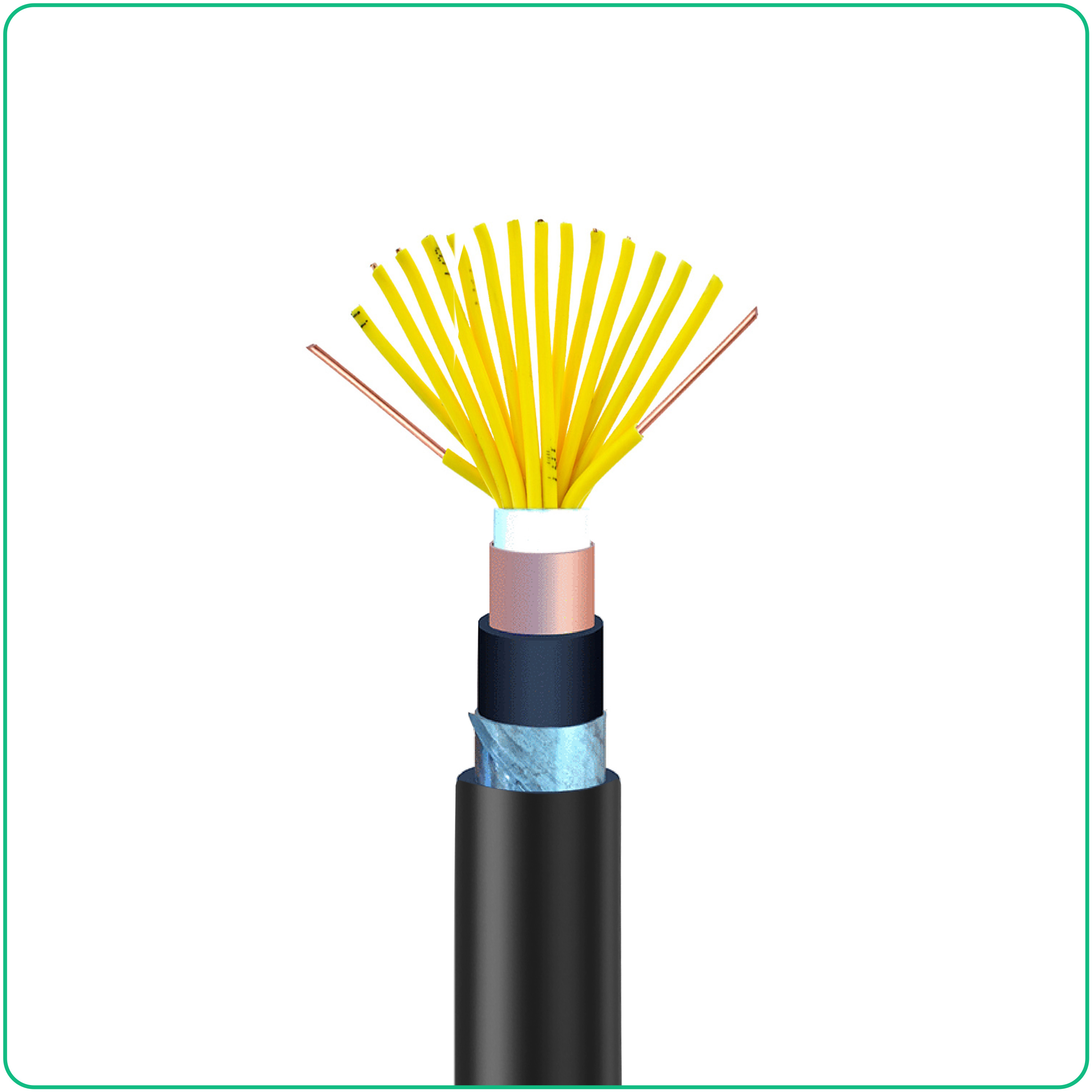

Control&Instrumentation Cable
Control&Instrumentation Cable
Applications

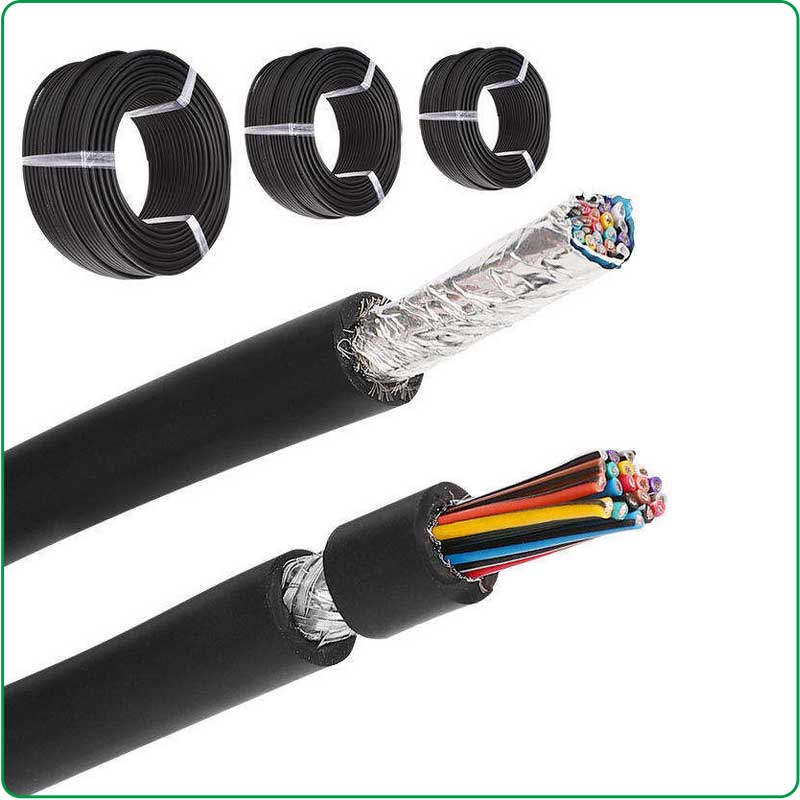

4-core shielded control cable is a professional industrial control wire designed for electrical control, signal transmission and instrumentation wiring with high anti-interference demands. It adopts high-grade PVC insulation, dense copper wire braid shielding and durable PVC outer sheath, fully conforming to GB/T 9330-2020 national standard with a rated voltage of 450/750V. Built with high-purity oxygen-free copper conductors, this cable features stable electrical properties, strong anti-electromagnetic interference performance, good flexibility and long service life, widely applied in industrial automation, power distribution cabinets, building electrical, fire control and other engineering fields. We support customized specifications, lengths and colors to meet diverse project requirements.
Details
Overview 4-core shielded control cable is widely used in various occasions requiring stable control signal transmission and anti-interference, mainly including:

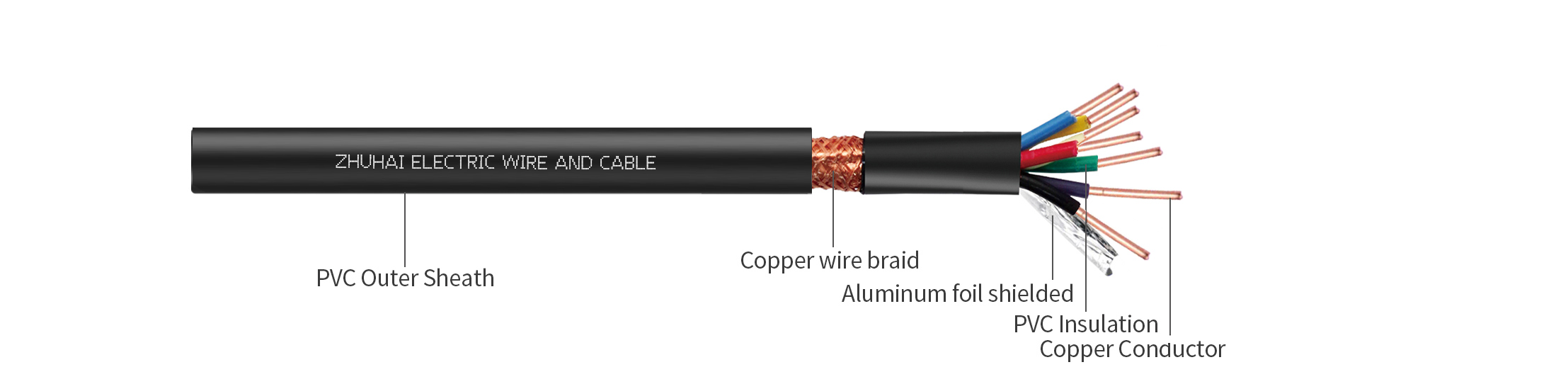

CONSTRUCTION
4-core shielded control cable is widely used in various occasions requiring stable control signal transmission and anti-interference, mainly including:

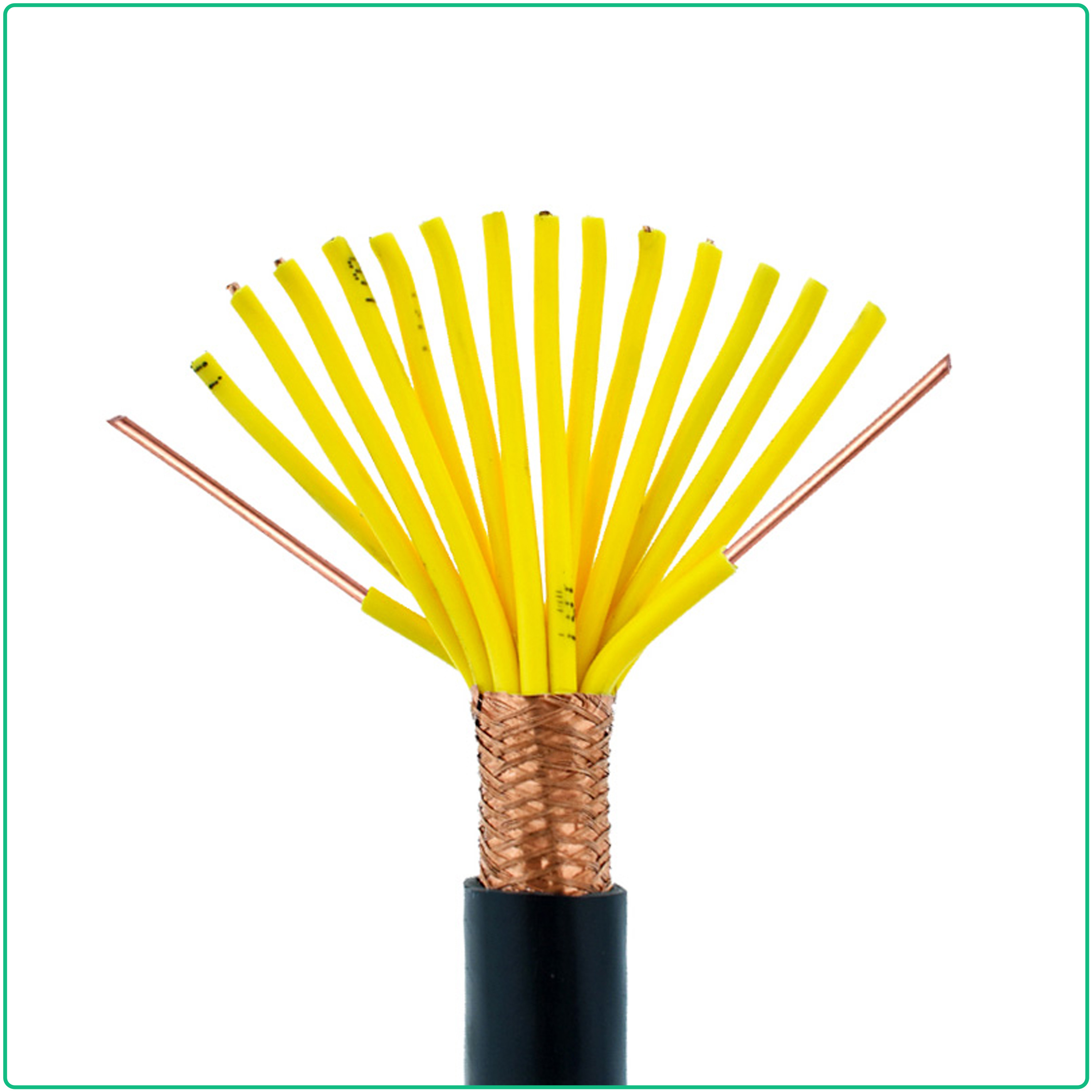

• Excellent Anti-Interference: Equipped with high-density copper wire braid shielding, it effectively isolates external electromagnetic interference, ensuring stable and distortion-free transmission of control signals and instrument signals, suitable for precision electrical equipment.
• Stable Electrical Performance: High-purity oxygen-free copper conductor reduces resistance loss, with standard thickness PVC insulation ensuring high insulation resistance and safe operation under rated voltage, no leakage and low failure rate.
• Durable & Wear-Resistant: Thickened PVC outer sheath features outstanding oil resistance, wear resistance and aging resistance, adapting to harsh industrial environments, effectively prolonging the service life of the cable.
• Easy Installation & Laying: Moderate flexibility and reasonable bending radius make it suitable for indoor fixed laying, cable tray and cable trench installation, simple construction and high efficiency.
• Standard Quality Assurance: Produced in strict accordance with national standards, complete qualification certificates, full cross-section and sufficient length, support third-party testing to meet engineering acceptance requirements.
• Flexible Customization: Support customized cable length, core color and outer sheath color, meet the personalized needs of different projects and equipment.
TECHNICAL DATA
Parameter Item | 4×1.5mm² | 4×2.5mm² | 4×4mm² | 4×6mm² |
Product Model | KVVP 4×1.5mm² | KVVP 4×2.5mm² | KVVP 4×4mm² | KVVP 4×6mm² |
Rated Voltage | 450/750V | 450/750V | 450/750V | 450/750V |
Executive Standard | GB/T 9330-2020 | GB/T 9330-2020 | GB/T 9330-2020 | GB/T 9330-2020 |
Conductor Material | Oxygen-Free Copper | Oxygen-Free Copper | Oxygen-Free Copper | Oxygen-Free Copper |
Conductor Resistance (20℃) | ≤12.1Ω/km | ≤7.41Ω/km | ≤4.61Ω/km | ≤3.08Ω/km |
Insulation Material | PVC | PVC | PVC | PVC |
Insulation Thickness | ≥0.6mm | ≥0.6mm | ≥0.7mm | ≥0.7mm |
Core Colors | Red, Yellow, Blue, Black | Red, Yellow, Blue, Black | Red, Yellow, Blue, Black | Red, Yellow, Blue, Black |
Shielding Structure | Copper Braid (≥80% Density) | Copper Braid (≥80% Density) | Copper Braid (≥80% Density) | Copper Braid (≥80% Density) |
Outer Sheath Material | PVC | PVC | PVC | PVC |
Outer Sheath Thickness | ≥1.0mm | ≥1.0mm | ≥1.1mm | ≥1.2mm |
Outer Sheath Color | Black (Customizable) | Black (Customizable) | Black (Customizable) | Black (Customizable) |
Reference Outer Diameter | ≈10.2mm | ≈11.8mm | ≈14.0mm | ≈16.1mm |
Operating Temperature | -15℃ ~ 70℃ | -15℃ ~ 70℃ | -15℃ ~ 70℃ | -15℃ ~ 70℃ |
Minimum Bending Radius | ≥10×OD | ≥10×OD | ≥10×OD | ≥10×OD |
