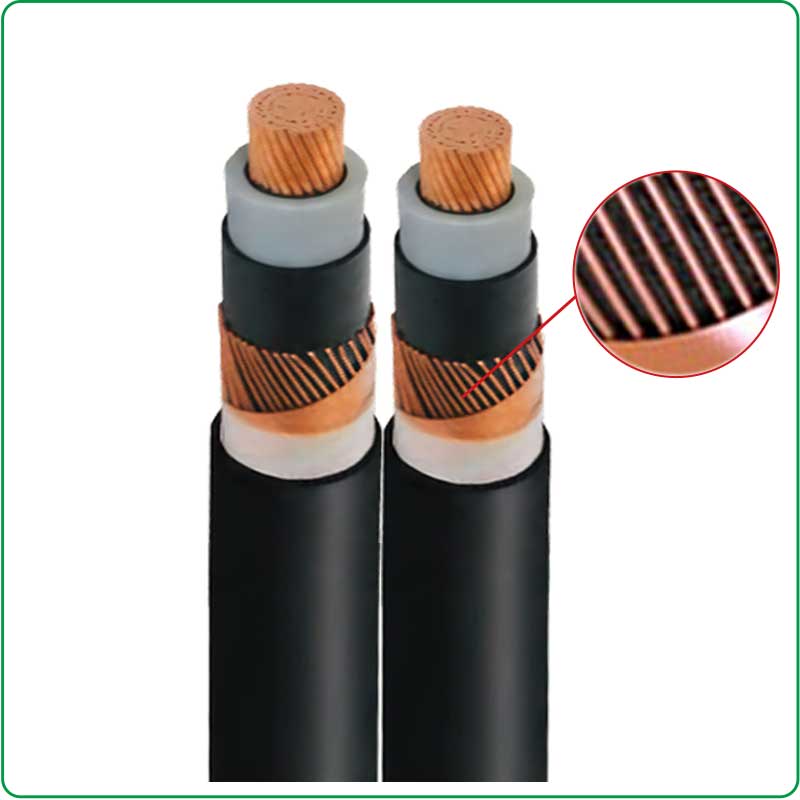

Copper wire shielded aluminum wire armored cable CWS/CU/XLPE/AWA/PVC copper wire low-voltage power cable

Applications

CWS/CU/XLPE/AWA/PVC copper cable stranded aluminium medium voltage cables,the cables are mainly used for:

● Indoors and in cable ducts

● Outdoors,underground

● In power supply stations

● Transformer stations

● Industrial Plants

Using steel tape armouring offers great mechanical protection, making it rigid with a large radius installation indoors and outdoors.

For any more information or advice please contact the office on 0086-18832134509 (WhatsApp/WeChat)

Inquire Now WhatsApp

Details

Overview

Medium voltage power cable, CWS/CU/XLPE/AWA/PVC Cable

(CWS/CU/XLPE/AWA/PVC)medium voltage power cable with stranded compacted aluminium conductor is composed of aluminium conductor (AL), cross-linked polyethylene insulation (XPLE), Copper tape or copper wire screen, steel tape armoring for mechanical protection and a polyvinyl chloride sheath (PVC). Medium voltage cables are suitable for for distribution networks,in fixed installation outdoors in cable ducts or directly in the ground, it widely used in transformer stations, electric power plants and industrial plants.

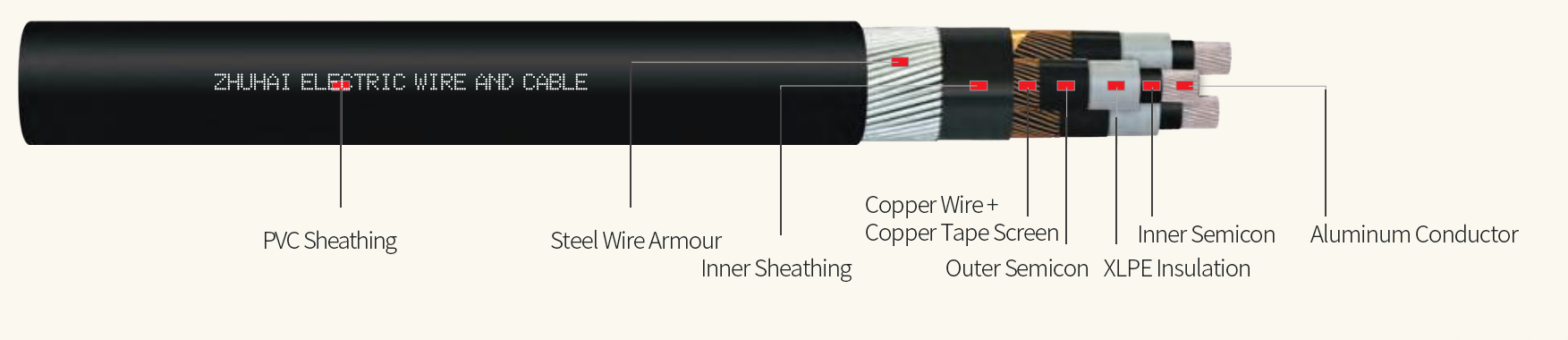

Construction

Copper wire shielded aluminum wire armored cable CWS/CU/XLPE/AWA/PVC copper wire low-voltage power cable

Descriptions：MV Power Cable

Conductor：Copper, Class2，Circular compacted conductors

Conductor Screen: Non-metallic,semi-conducting compound

Insulation: Cross-linked polyethylene XLPE

Insulation Screen: Non-metallic,semi-conducting compound

Metallic Screen: Copper Wire +Copper Tape Screen

Filler: Non-hygroscopic Material

Binder Tape: Semi-Conductive Water blocking tape

Armouring: Steel Wire Armoring,Aluminium Tape Armoring

Outer Sheath: Polyvinyl Chloride PVC&Polyethylene PE

Physical Properties

Operating Temperature: up to 70℃（PVC insulation); up to 90℃(XLPE insulation)

Temperature Range: -5℃（PVC or LSZH sheath); -20℃（PE sheath)

Short Circuit Temperature(5 seconds maximum duration): 140℃-160℃（PVC insulation);250℃（XLPE insulation)

Nominal Voltages：U0/U 1.8/3kV , 6/10 kV, 12/20 kV, 18/30 kV

Technical Data

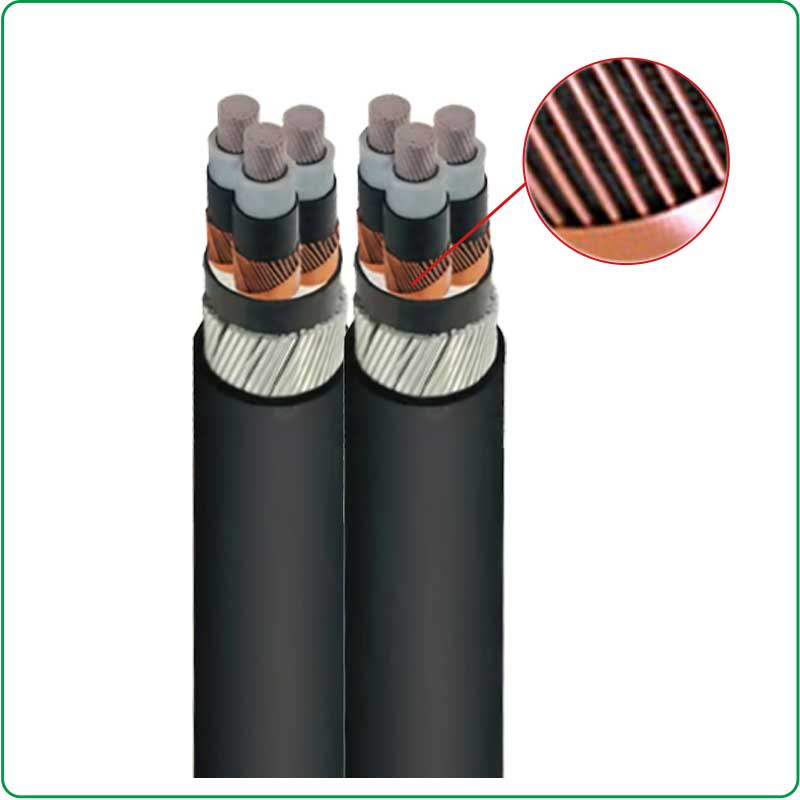

Three Core Cable-12/20KV
No. of cores and nominal cross section	Thickness of Insulation	Thickness of sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of conductor(20℃)	Current Carrying Capacity
mm2	mm	mm	mm	kg/km	Ω/km	in air(A)	in ground(A)
3Cx70	5.5	3	67	4850	0.443	175	167
3Cx95	5.5	3.1	71	5400	0.32	211	199
3Cx120	5.5	3.2	75	6000	0.253	241	226
3Cx150	5.5	3.3	78.0	6500	0.206	271	251
3Cx185	5.5	3.4	81	7200	0.164	310	284
3Cx240	5.5	3.7	89	9150	0.125	364	329
3Cx300	5.5	3.8	94	10300	0.100	413	369
3Cx400	5.5	4.0	96	11800	0.0778	470	415
Three Core Cable-18/30KV,19/33KV
No. of cores and nominal cross section	Thickness of Insulation	Thickness of sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of conductor(20℃)	Current Carrying Capacity
mm2	mm	mm	mm	kg/km	Ω/km	in air(A)	in ground(A)
3Cx70	8.0	3.3	77	6200	0.443	175	167
3Cx95	8.0	3.5	82	7000	0.32	211	199
3Cx120	8.0	3.6	86	8400	0.253	241	226
3Cx150	8.0	3.7	89.0	9000	0.206	271	251
3Cx185	8.0	3.9	93	9850	0.164	310	284
3Cx240	8.0	4.0	100	11100	0.125	364	329
3Cx300	8.0	4.2	104	12400	0.100	413	369
