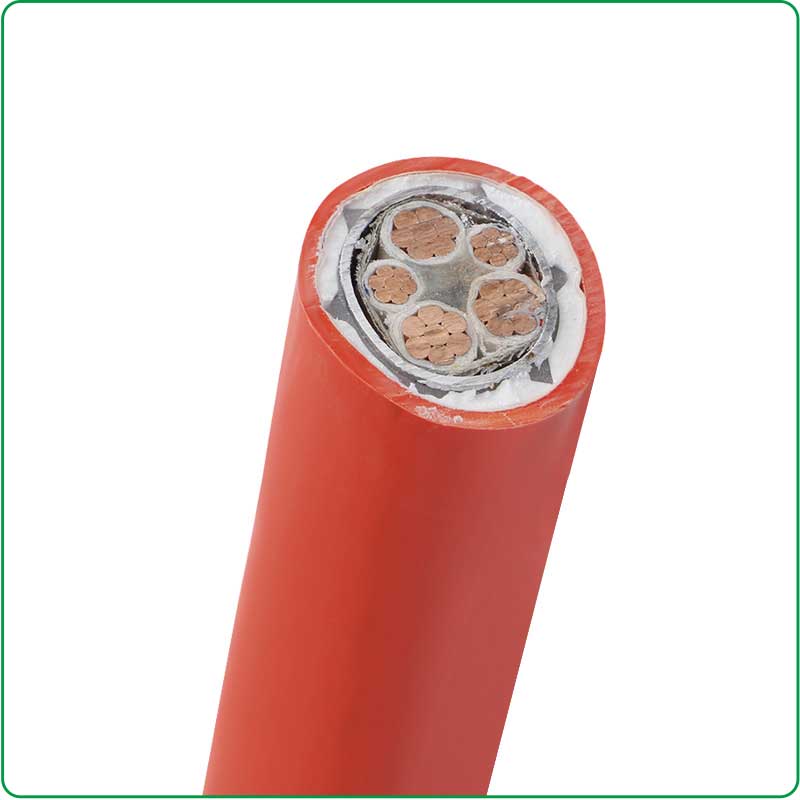

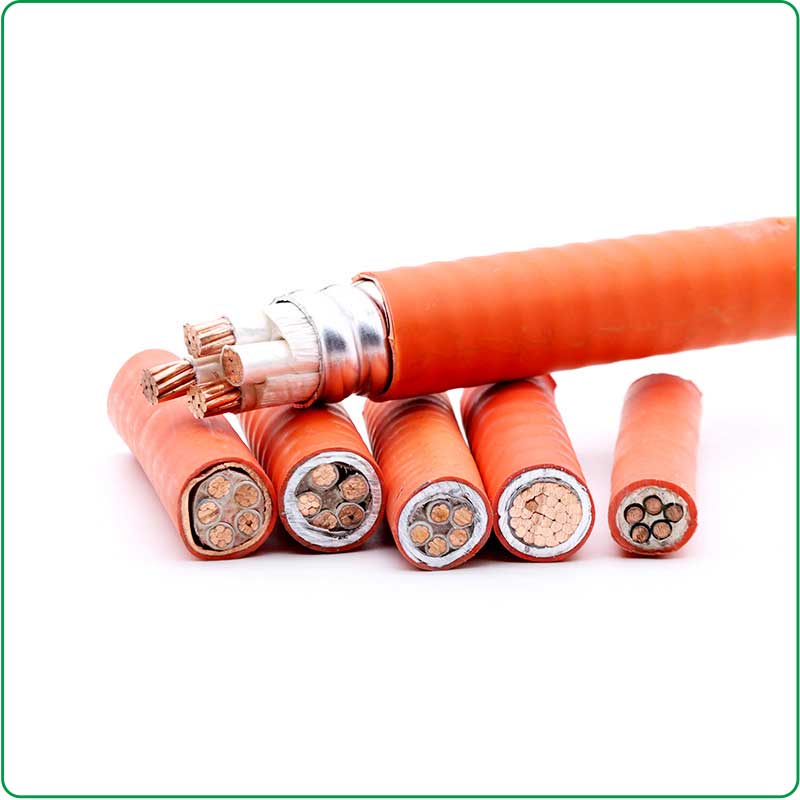

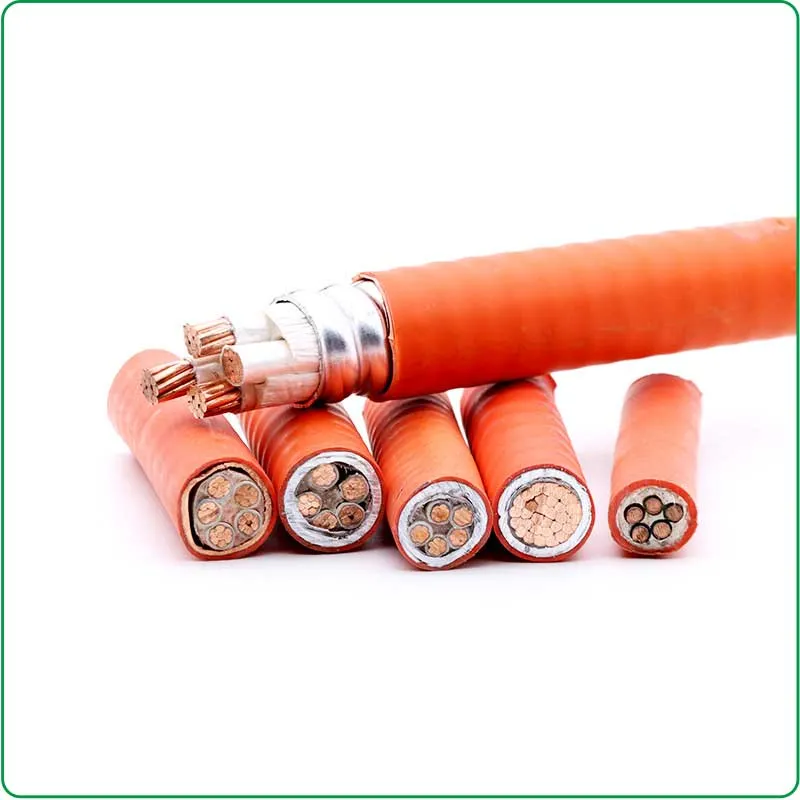

Mineral Insulated Fire Resistant Cable 0.6/1kV Fireproof Cable

Mineral cable is a high-performance mineral insulated fire-resistant cable and LSZH sheathed mineral cable. It features a corrugated seamless copper inner sheath and an extra LSZH (Low Smoke Zero Halogen) outer protective sheath to boost safety and durability. Made with high-purity annealed electrolytic copper conductors and high-density mica tape mineral insulation, it integrates excellent fireproof performance, reliable electrical conductivity and eco-friendly merits, perfect for critical power transmission applications and high fire-safety engineering projects.

Construction

Mineral Insulated Fire Resistant Cable •0.6/1kV LSZH sheathed cable

Full Product Model: Fire Resistant Cable Copper Core Corrugated Copper Sheath Mineral Insulated Cable with LSZH Outer Sheath (3+2 Core)

Executive Standard: JG/T 313-2014, BS6387, IEC 60228

Rated Voltage: 0.6/1kV

Conductor Material: High-Purity Annealed Electrolytic Copper, compliant with international electrical conductivity and resistance standards

Insulation Structure: Synthetic Mica Tape (High-Density Mineral Insulation Layer)

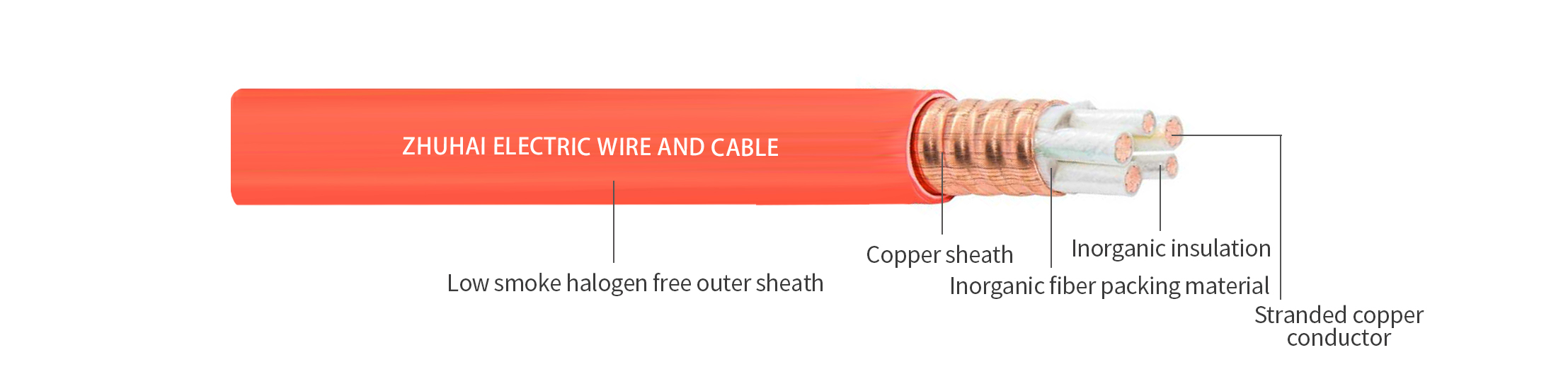

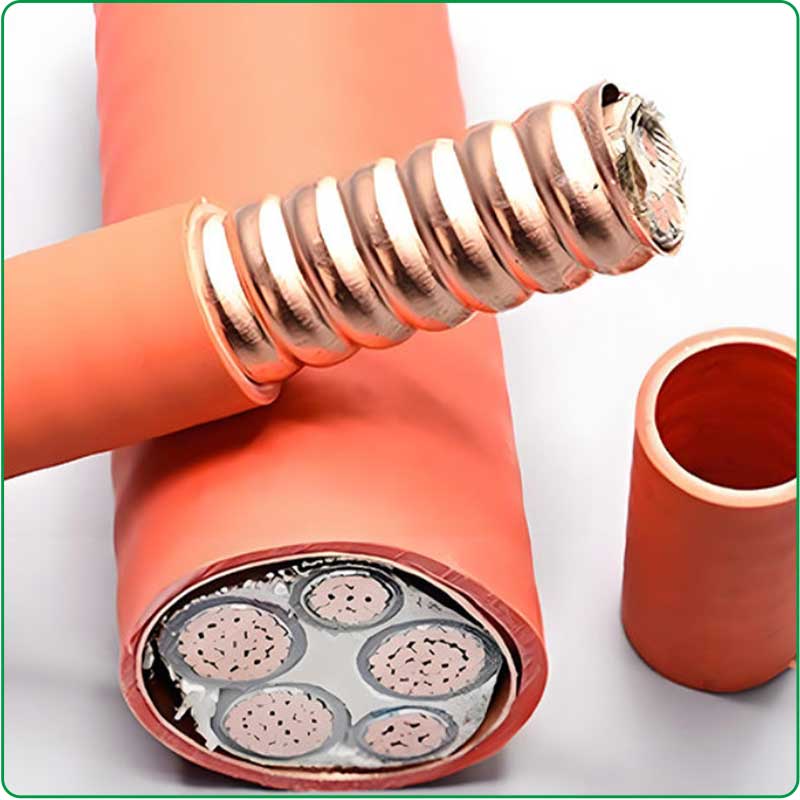

Sheath Structure: Inner Corrugated Seamless Copper Sheath + Outer LSZH (Low Smoke Zero Halogen) Polyolefin Sheath

Core Configuration & Color Code: 3 Phase Cores (Yellow, Green, Red) + 1 Neutral Core (N, Blue) + 1 Protective Earth Core (PE, Green-Yellow)

Core Purpose: 3 main cores for power transmission, 1 neutral core for unbalanced current return, 1 PE core for grounding protection

Key Electrical Index: DC resistance tested at 20℃, in full compliance with IEC 60228 Class 2 conductor requirements, ensuring low power loss and stable circuit operation.

Technical Data

Cable Specification (mm²)	Conductor Diamer (Main / Earth Cores) (mm)	Approx. Outer Diameter (mm)	Approx. Unit Weight (kg/km)	Long-Term Current Rating (A)	DC Resistance (Ω/km) - Main Core	DC Resistance (Ω/km) - N/PE Core
3×4+2×2.5	19/0.52 / 19/0.41	21.5	1420	32	4.61	7.41
3×6+2×4	19/0.64 / 19/0.52	23.8	1840	42	3.08	4.61
3×10+2×6	49/0.52 / 19/0.64	27.2	2580	64	1.83	3.08
3×16+2×10	49/0.64 / 49/0.52	31.0	3560	85	1.15	1.83
3×25+2×16	98/0.58 / 49/0.64	35.7	4980	115	0.73	1.15
3×35+2×16	133/0.58 / 49/0.64	39.4	6130	140	0.52	1.15
3×50+2×25	133/0.68 / 98/0.58	44.2	7890	175	0.39	0.73
3×70+2×35	189/0.68 / 133/0.58	49.6	10120	220	0.27	0.52
3×95+2×50	259/0.68 / 133/0.68	55.5	13010	265	0.19	0.39
3×120+2×70	323/0.68 / 189/0.68	60.3	15600	300	0.15	0.27
3×150+2×70	399/0.68 / 189/0.68	64.8	18290	340	0.12	0.27
3×185+2×95	494/0.68 / 259/0.68	70.2	21830	385	0.10	0.19
