CU-LSZH-PVC-XLPE-MINERAL-INSULATED-CABLE

Details

Durable Flexible Mineral Fire Resistant Cable 0.6/1kV

• Conductor: High-purity stranded annealed copper conductor, high conductivity, low resistance, stable electrical performance

• Insulation Layer: High-temperature resistant inorganic mica tape, non-combustible, high insulation, anti-aging

• Filling Layer: Alkali-free high-temperature resistant glass fiber, compact structure, strong pressure resistance and heat resistance

• Inner Sheath: Longitudinal welded corrugated copper tube, integrated forming, good air tightness and waterproof performance, serving as grounding protection layer

• Optional Outer Sheath: LSZH low smoke zero halogen sheath (Mineral Insulated Fire Resistant Cable) / PVC sheath (Fire-proof cable) / no outer sheath (Mineral cable)

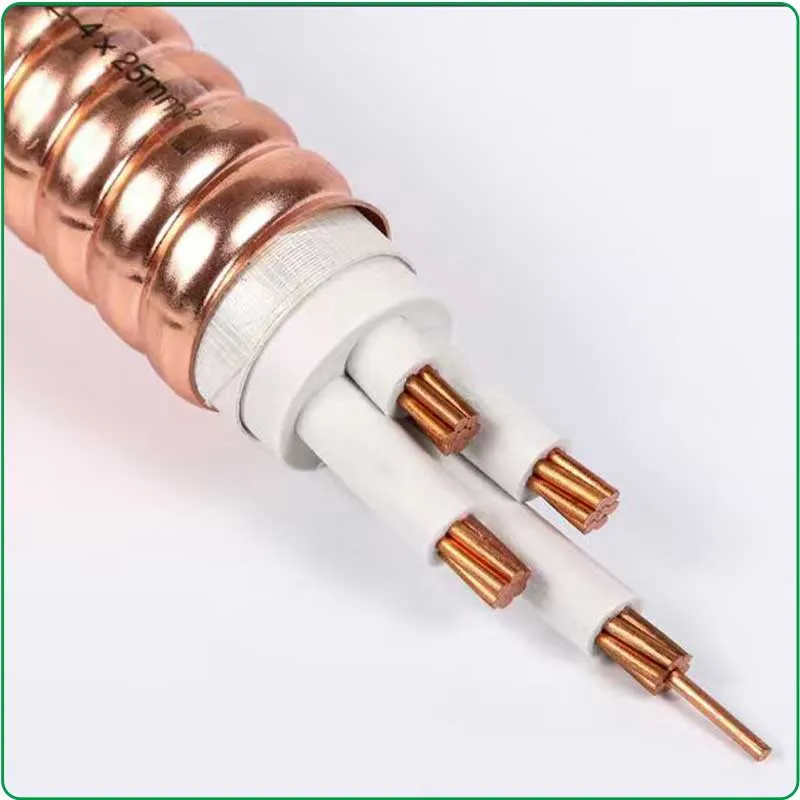

Construction

Mineral Insulated Fire Resistant Cable Fireproof Cable

Technical Specifications

Parameter Category	Specification Item	Technical Details
Basic Structure & Specification	Rated Voltage	0.6/1 kV
	Conductor Material	High-purity electrolytic copper (Class 2 stranded)
	Insulation Material	Inorganic mineral composite (synthetic mica tape)
	Sheath Structure	Corrugated copper sheath; optional LSZH outer jacket (Flexible fire-resistant cableY), PVC outer jacket (Flexible fire-resistant cableV)
	Available Core Configurations	1, 2, 3, 3+1, 4, 4+1, 5 cores
	Cross Section Range	Single-core: 1.0 mm² - 400 mm²；Multi-core: 2.5 mm² - 185 mm²
	Working Temperature	-40°C ~ +70°C; short-term overload resistant up to 250°C
Electrical Performance	Power Frequency Withstand Voltage	3.5kV/5min, No Breakdown
	Insulation Resistance (20°C)	≥100 MΩ·km
	Fire Resistance Performance	950°C, 180min continuous circuit integrity (Class A fire resistant)
	Environmental Characteristic	Zero Halogen, Low Smoke, Non-toxic, Non-corrosive
Mechanical & Protection Performance	Protection Grade	IP67
	Minimum Bending Radius	≤12mm: 6D；12–20mm: 10D
	Service Life	≥50 Years (Normal Laying Environment)

Technical Data

Cable Size	Insulation Thickness (mm)	Copper Sheath Thickness (mm)	Outer Diameter (mm)	Ampacity (A)	Voltage Drop (V/A·km)
1×1.0 mm²	0.8	0.4	4.4	32	23.1
1×1.5 mm²	0.8	0.4	4.7	32	15.4
1×2.5 mm²	0.8	0.4	5.2	42	9.48
1×4.0 mm²	0.8	0.5	7.6	56	5.9
1×6.0 mm²	0.8	0.5	8.4	70	3.9
1×10 mm²	1.0	0.5	11.0	97	2.33
1×16 mm²	1.0	0.6	15.5	125	1.47
1×25 mm²	1.0	0.6	18.0	165	0.92
1×35 mm²	1.0	0.6	20.5	200	0.67
1×50 mm²	1.2	0.7	27.7	245	0.49
1×70 mm²	1.2	0.7	31.7	305	0.34
1×95 mm²	1.2	0.8	41.4	375	0.25
1×120 mm²	1.2	0.8	45.6	435	0.20
1×150 mm²	1.4	0.8	50.6	500	0.16
1×185 mm²	1.4	0.9	62.4	580	0.13
1×240 mm²	1.4	0.9	70.2	685	0.10
1×300 mm²	1.6	1.0	87.0	795	0.08
1×400 mm²	1.6	1.0	95.4	930	0.06

0.6/1kV Fire-resistant Flexible Mineral Cable

Technical Specifications
