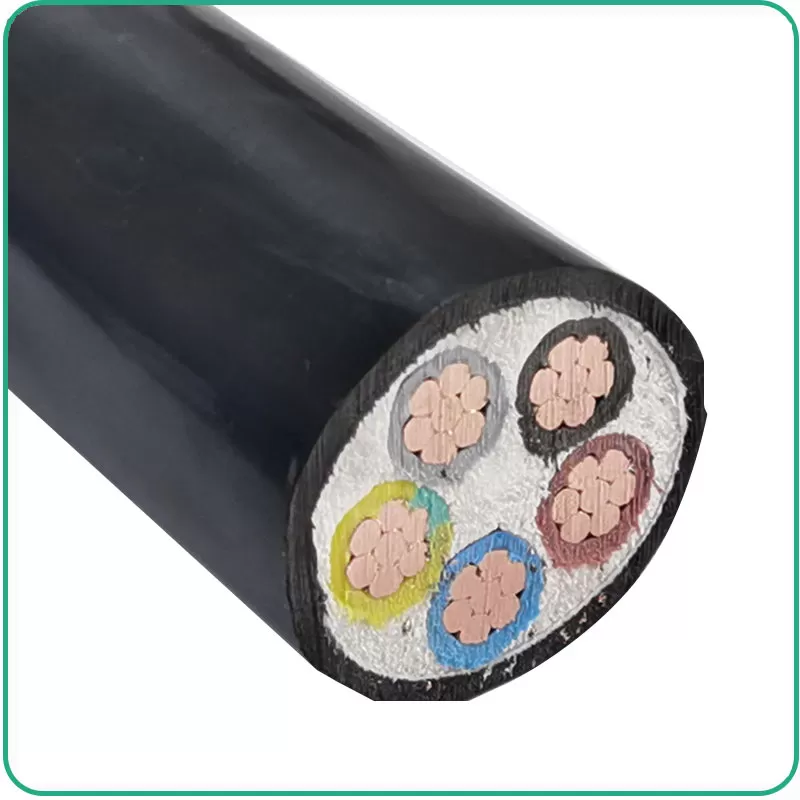

CU-XLPE-PVC-R2V-XLPE-INSULATED-POWER-CABLE

Details

XLPE Insulated,PVC Sheathed Cable,0.6/1kV

The 0.6/1KV CU/XPLE/PVC cable plays a vital role in low-voltage power transmission and distribution, widely applied in building,industrial, and infrastructure settings to ensure the reliability and safety of power systems. This Power Cable with stranded compacted copper conductor(CU), cross-linked polyethylene insulation (XPLE), and a polyvinyl chloride sheath (PVC). For fixed installation in interiors,outdoor installation,in soil,in water and concrete,if no posterior mechanical damage is to be expected.

Construction

Description: R2V,XLPE Insulated Copper Power Cable

Conductors: Class 1 or Class 2 of plain copper,or of Class 5 of plain copper in accordance with IEC 60228.

Insulation: Cross-linked polyethylene XLPE

Insulation Colour: Natural or as required

Filler: Non-hygroscopic Material

Outer Sheath: Extruded Polyvinyl Chloride PVC&Polyethylene PE&LSZH

Colour of Sheath: Black

Voltage Rating (Uo/U): 600/1000V Test Voltage: 3.5kV for 5 minutes

Physical Properties

Maximal operating conductor Temperature: up to 70℃（PVC insulation); up to 90℃(XLPE insulation)

Operating Temperature Range: -5℃（PVC or LSZH sheath); -20℃（PE sheath)

Short Circuit Temperature(5 seconds maximum duration): 140℃-160℃（PVC insulation);250℃（XLPE insulation)

Technical Data

0.6/1kV-3+1 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X2.5+1X1.5	0.7/0.7	1.8	12.3	200	7.41/12.1	28	39
3X4+1X2.5	0.7/0.7	1.8	13.4	260	4.61/7.41	37	51
3X6+1X4	0.7/0.7	1.8	14.6	350	3.08/4.61	47	64
3X10+1X6	0.7/0.7	1.8	16.9	480	1.83/3.08	65	86
3X16+1X10	0.7/0.7	1.8	19.4	760	1.15/1.83	84	110
3X25+1X16	0.9/0.7	1.8	22.8	1040	0.727/1.15	110	140
3X35+1X16	0.9/0.7	1.8	25.1	1420	0.524/1.15	135	170
3X50+1X25	1.0/0.9	1.8	28.2	1830	0.387/0.727	170	205
3X70+1X35	1.1/0.9	1.9	31.9	2500	0.268/0.524	215	250
3X95+1X50	1.1/1.0	2.1	35.7	3400	0.193/0.387	265	300
3X120+1X70	1.2/1.1	2.2	39.6	4300	0.153/0.268	310	345
3X150+1X70	1.4/1.1	2.3	43.6	5200	0.124/0.268	350	385
3X185+1X95	1.6/1.1	2.5	49.8	6500	0.0991/0.193	405	435
3X240+1X120	1.7/1.2	2.7	55.3	8500	0.0754/0.153	480	500
3X300+1X150	1.8/1.4	2.9	57.0	10000	0.0601/0.124	555	565
3X400+1X185	2.0/1.7	3.1	70.0	13300	0.0470/0.0991	640	640
0.6/1kV-4+1 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X2.5+1X1.5	0.7/0.7	1.8	13.2	220	7.41/12.1	28	39
4X4+1X2.5	0.7/0.7	1.8	14.5	320	4.61/7.41	37	51
4X6+1X4	0.7/0.7	1.8	15.9	420	3.08/4.61	47	64
4X10+1X6	0.7/0.7	1.8	18.5	650	1.83/3.08	65	86
4X16+1X10	0.7/0.7	1.8	21.3	950	1.15/1.83	84	110
4X25+1X16	0.9/0.7	1.8	25.7	1450	0.727/1.15	110	140
4X35+1X16	0.9/0.7	1.8	28.2	1850	0.524/1.15	135	170
4X50+1X25	1.0/0.9	1.9	28.9	2500	0.387/0.727	170	205
7X70+1X35	1.1/0.9	2.0	32.2	3450	0.268/0.524	215	250
4X95+1X50	1.1/1.0	2.2	36.9	4700	0.193/0.387	265	300
4X120+1X70	1.2/1.1	2.3	40.8	6000	0.153/0.268	310	345
4X150+1X70	1.4/1.1	2.5	44.7	7100	0.124/0.268	350	385
4X185+1X95	1.6/1.1	2.7	50.7	9000	0.0991/0.193	405	435
4X240+1X120	1.7/1.2	2.9	56.4	10400	0.0754/0.153	480	500
4X300+1X150	1.8/1.4	3.1	64.0	13500	0.0601/0.124	555	565
0.6/1kV-3+2 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X2.5+2X1.5	0.7/0.7	1.8	13.0	200	7.41/12.1	28	39
3X4+2X2.5	0.7/0.7	1.8	14.3	260	4.61/7.41	37	51
3X6+2X4	0.7/0.7	1.8	15.6	350	3.08/4.61	47	64
3X10+2X6	0.7/0.7	1.8	17.9	480	1.83/3.08	65	86
3X16+2X10	0.7/0.7	1.8	20.8	760	1.15/1.83	84	110
3X25+2X16	0.9/0.7	1.8	25.2	1040	0.727/1.15	110	140
3X35+2X16	0.9/0.7	1.8	26.8	1420	0.524/1.15	135	170
3X50+2X25	1.0/0.9	1.9	28.7	1830	0.387/0.727	170	205
3X70+2X35	1.1/0.9	2.0	32.2	2500	0.268/0.524	215	250
3X95+2X50	1.1/1.0	2.2	36.7	3400	0.193/0.387	265	300
3X120+2X70	1.2/1.1	2.3	40.8	4300	0.153/0.268	310	345
3X150+2X70	1.4/1.1	2.4	44.5	5200	0.124/0.268	350	385
3X185+2X95	1.6/1.1	2.6	50.5	6500	0.0991/0.193	405	435
3X240+2X120	1.7/1.2	2.8	56.1	8500	0.0754/0.153	480	500
3X300+2X150	1.8/1.4	3.0	63.7	10000	0.0601/0.124	555	565
