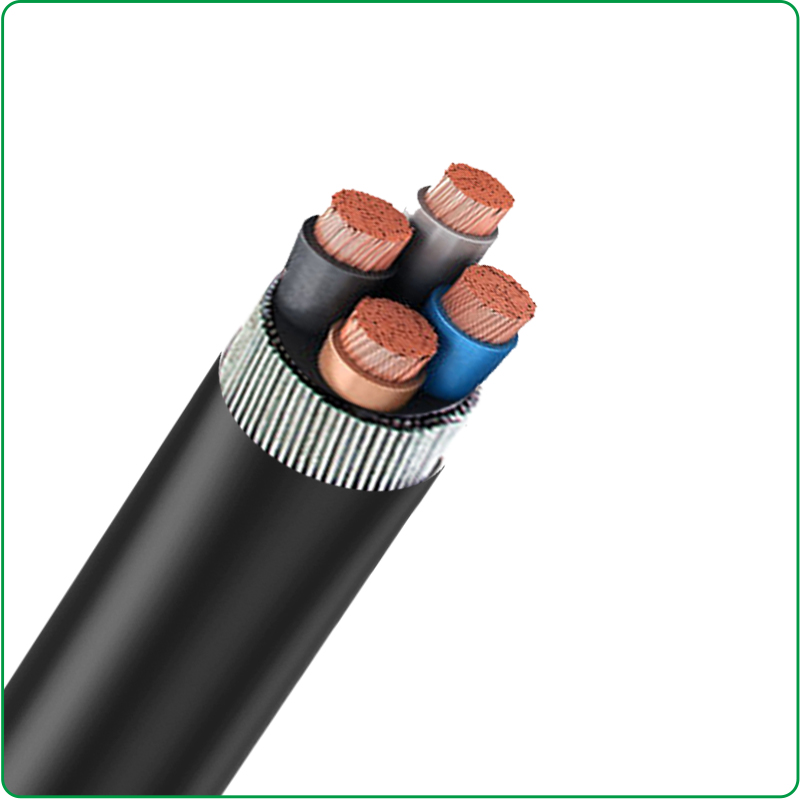

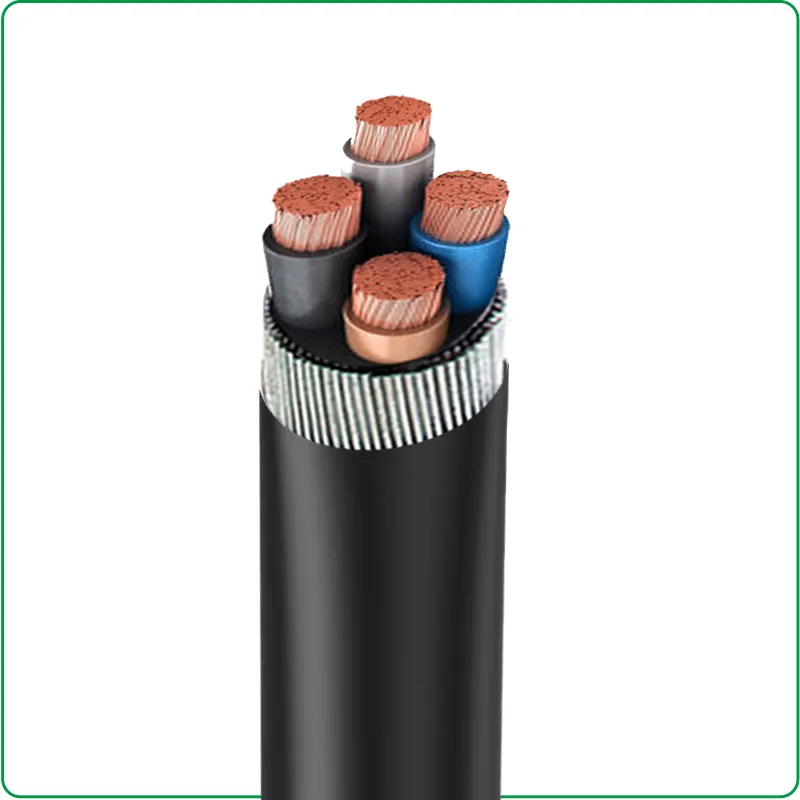

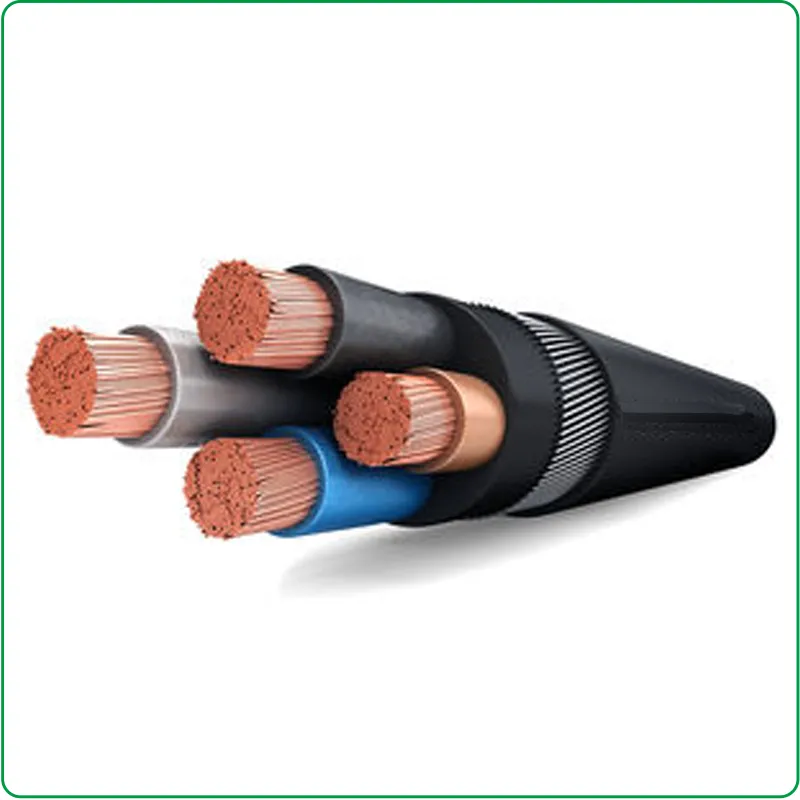

LSZH Flexible Power Cable RE1ME1-K 0.6/1kV, XLPE Insulated, Designed for Fixed Wiring and High Fire Safety in Accordance with IEC 60502-1

Applications

     The RE1ME1-K 0.6/1kV flexible power cable is a high-performance transmission cable for fixed installations requiring fire safety, reliability and environmental friendliness. It complies with IEC 60502-1, meeting strict standards for electrical performance, mechanical strength and fire resistance.
      Rated at 0.6/1kV, it is suitable for low-voltage power distribution systems, ensuring stable and efficient energy supply for various projects.
      It features XLPE insulation with excellent electrical insulation, heat resistance and chemical stability, preventing leakage, reducing energy loss and extending service life. Its LSZH sheath ensures high fire safety, emitting minimal smoke and no toxic or corrosive gases in fire to protect lives and equipment (e.g., high-rises, hospitals). It also resists abrasion, impact and aging for durability.
      Its flexible design enables easy installation in tight or complex spaces, widely used in residential, commercial and industrial fixed installations requiring high fire safety and reliable transmission.
      In summary, the RE1ME1-K 0.6/1kV cable integrates international standard compliance, excellent material performance, easy installation and reliable transmission, delivering safe, long-lasting performance for low-voltage power distribution.

For any more information or advice, please contact the office on 0086-18832134509 (WhatsApp/WeChat)

Inquire Now WhatsApp

Details

Overview

Zhuhai RE1ME1-K 0.6/1kV cable is an XLPE insulated, LSZH sheathed flexible power cable conforming to IEC 60502-1.It provides high fire safety, low smoke and zero halogen properties, suitable for fixed indoor and outdoor installations

CONSTRUCTION

RE1ME1-K XLPE Insulated LSZH Sheath Cable - IEC 60502 Compliant Flexible Power Cable

• Voltage Withstand Test: AC 3.5 kV (0.6/1kV)), DC 8 kV (0.6/1kV)

• Temperature Range: Maximum operating temperature 90℃; Maximum short-circuit temperature 250℃ (≤5 seconds); Minimum installation temperature ≥-15℃

• Bending Radius: ≥6× cable outer diameter (fixed installation); ≥8× cable outer diameter (bending during installation)

• Flame Retardant Performance: Complies with IEC 60332-1, no open flame spread

• Low Smoke & Zero Halogen: Smoke density meets IEC 61034; Halogen content meets IEC 60754-1/2, no toxic gas release

• UV Resistance: Outdoor-rated, suitable for long-term outdoor use without aging

• Conductivity: High-purity stranded copper conductor, low resistance, stable power transmission

TECHNICAL DATA

Single-Core Cable Specifications (0.6/1kV)

Nominal Cross-Section (mm²)	Conductor Resistance (max Ω/km @ 20℃)	Insulation Thickness (mm)	Sheath Thickness (mm)	Approx. Outer Diameter (mm)	Approx. Weight (kg/km)
1.5	11.5	0.7	1.2	5.8	48
2.5	6.91	0.7	1.2	6.4	68
4	4.32	0.7	1.2	7.0	90
6	2.88	0.7	1.3	7.6	118
10	1.73	0.8	1.4	8.8	178
16	1.09	1.0	1.5	10.4	265
25	0.70	1.2	1.6	12.3	408
35	0.50	1.4	1.7	14.0	540
50	0.35	1.6	1.8	16.2	710

Multi-Core Cable Specifications (0.6/1kV)

Number of Cores	Nominal Cross-Section (mm²)	Approx. Outer Diameter (mm)	Approx. Weight (kg/km)
2×	1.5	8.0	88
2×	2.5	8.8	120
3×	1.5	8.6	115
3×	2.5	9.8	160
4×	1.5	9.4	145
4×	2.5	10.6	205
5×	1.5	10.4	180
