Solar Cable
Solar Cable
Applications
Solar Cable is one of the most important core componenets in photovoltaic power system,which guarantees safe,stable and efficient power transmission for all kinds of solar energy projects worldwide.
Main Applications of TUV Solar Cable in Solar Prujects:
● Large-scale ground-mounted solar power plants
● On-grid & off-grid PV system installation and module connection
● Commercial building rooftop solar and residential solar projects
● Industrial renewable energy system, distributed PV and micro grid projects
High-quality,certified solar cables directly improve system safety,service life and power generation efficiency.
Our PV cables meet TUV certification and can be manufactured in both H1Z2Z2-K DC1.5kV and PV1-F DC1.8kV.
For any more information or advice please contact the office on 0086-18832134509 (WhatsApp/WeChat)
Details

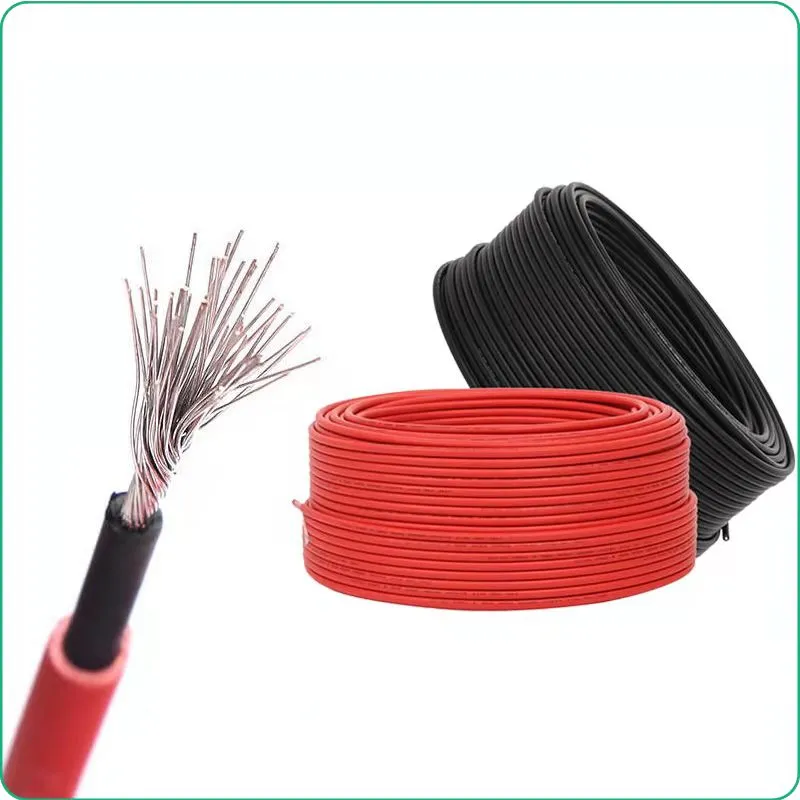

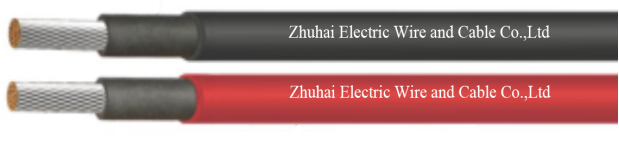

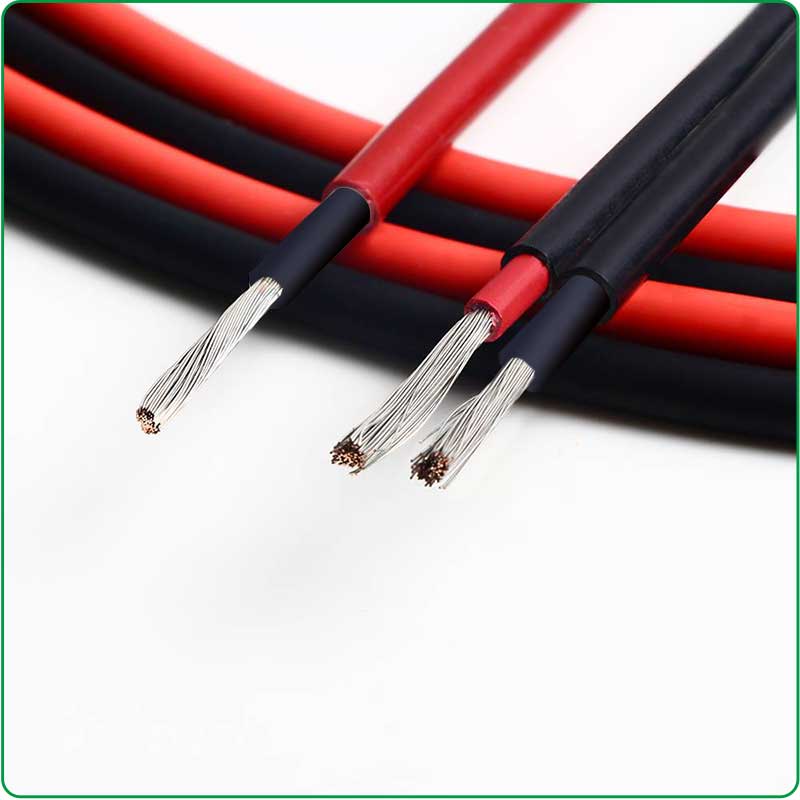

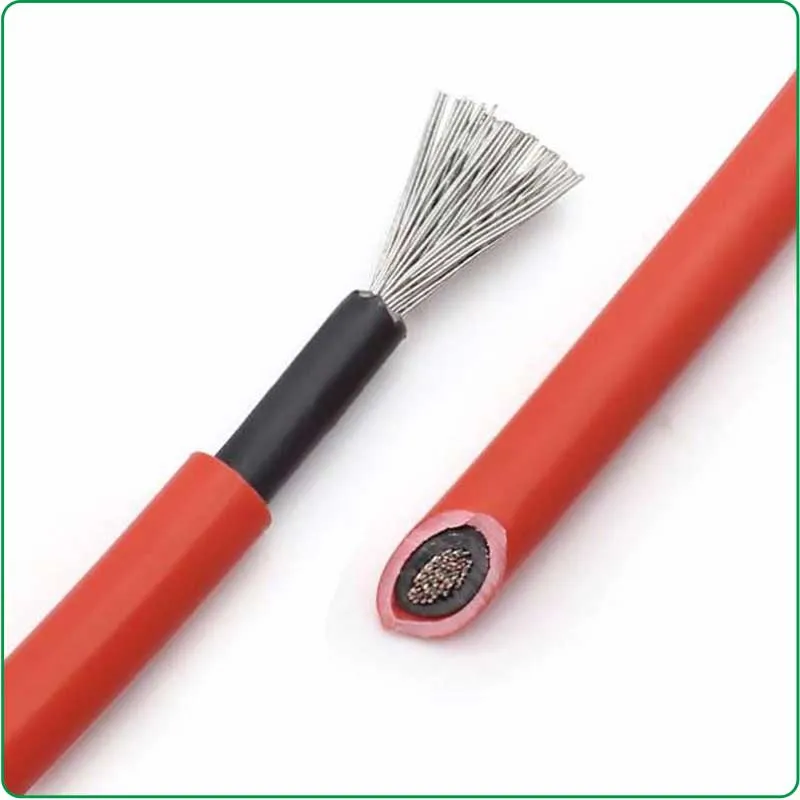

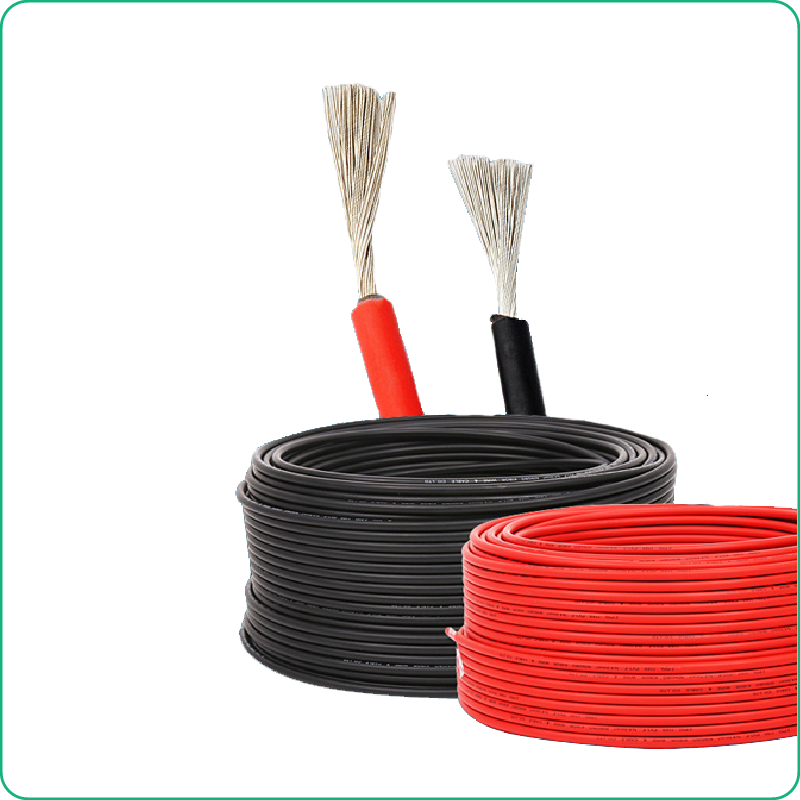

Overview Zhuhai Solar cable adopts high-purity tinned copper conductor and XLPE insulation material,which features low resistance,high conductivity,good oxidation resistance and excellent insulation performance. This structure ensures stable long-term performance,low power loss and long service life, suitable for both outdoor and indoor installation.
TUV Approved Solar Cable applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
Description: TUV Certified Solar Cable/PV Cable
Conductor: Tinned Copper(Class 5 flexible)
Insulation: XLPE(Cross-linked Polyethylene)
Outer Sheath: XLPE/LSZH, low smoke zero halogen
Model: H1Z2Z2-K, PV1-F
Standard: EN50618, 2pfG 1169
Working Temperature: -40℃ to +125℃
Main Performance: UV resistant,ozone resistant,weatherproof, anti-aging, moisture proof
Application: Commercial rooftop and residential solar photovoltaic systems,PV module connection and system installation projects, Ground-mounted solar power plants, Industrial renewable energy systems and microgrid projects
| Cross Section | Conductor ∅ | Outer ∅ | Current-carrying capacity at 60℃ | Conductor resistance at 20℃ |
| mxmm² | mm | mm | A | KΩ/km |
| 1x1.5 | 1.4 | 4.2 | 30 | 13.7 |
| 1x2.5 | 1.8 | 5 | 42 | 8.21 |
| 1x4 | 2.2 | 5.2 | 55 | 5.09 |
| 1x6 | 2.8 | 5.8 | 70 | 3.39 |
| 1x10 | 4.0 | 7.5 | 98 | 1.95 |
| 1x16 | 5.0 | 8.9 | 132 | 1.24 |
| 1x25 | 6.2 | 10.9 | 176 | 0.795 |
| 1x35 | 7.3 | 12.8 | 218 | 0.565 |
| 1x50 | 8.8 | 14.3 | 280 | 0.393 |
| 1x70 | 11.0 | 16.5 | 350 | 0.277 |
| 1x95 | 12.3 | 18.2 | 410 | 0.210 |
| 1x120 | 14.1 | 20.2 | 480 | 0.164 |
Yes, all ZhuhaiCable's solar cables are fully TUV,CE and ISO certified, complying with international PV standards for safety and quality.
ZhuhaiCable's PV cables use high-purity tinned copper conductor for better conductivity,oxidation resistance and long service life.
Yes. ZhuhaiCable's solar cable are specially designed for outdoor use, with strong UV resistance, waterproof, anti-aging and wide temperature resistance.
We use XLPE insulation, which provides high heat resistance,excellent electrical performance and longer service life.
We support both retail samples and bulk wholesale orders. ZhuhaiCable offer stable supply,competitive factory price and fast delivery.
Yes. ZhuhaiCable provide customized sizes, lengths and packaging according to your project requirements.
ZhuhaiCable as a professional and reliable solar cable manufacturer, provide stable supply, competitive factory wholesale prices and strict quality control. We support customized sizes and professional technical support for global customers.
If you are looking for a trusted solar cable supplier, welcome to contact us for best quotation, Tel/WhatsApp/WeChat: +86 18832134509
