CU/XLPE/PVC/DSTA/PVC Cable

Details

Overview

Zhuhai RVFV-K cable is manufactured with steel band, which provides high protection against rodents and mechanical damage, and flexible copper, which makes handling and installation easier; especially suitable for fixed installations that may be subject to mechanical aggression. It is highly recommended for use in installations where the presence of rodents couldimply a threat to the cable (such as warehouses, production plants and agricultural facilities). At the same time, its use is recommended for street lighting installations,they are indicated for transport and distribution of low voltage electricity, and their use is recommended for industrial connections, service connections, internal distribution and outdoor connections. They also can be used in underground networks and permanent installations.

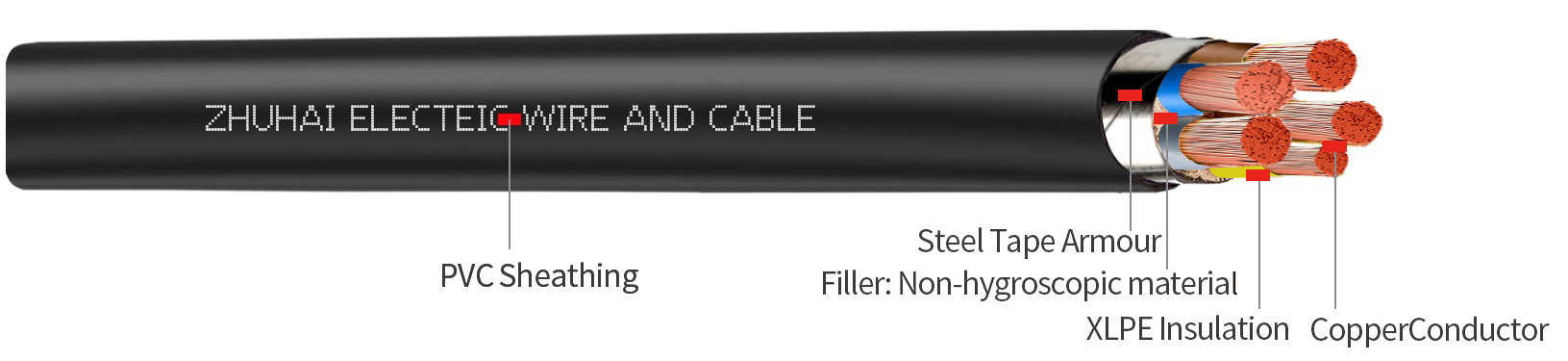

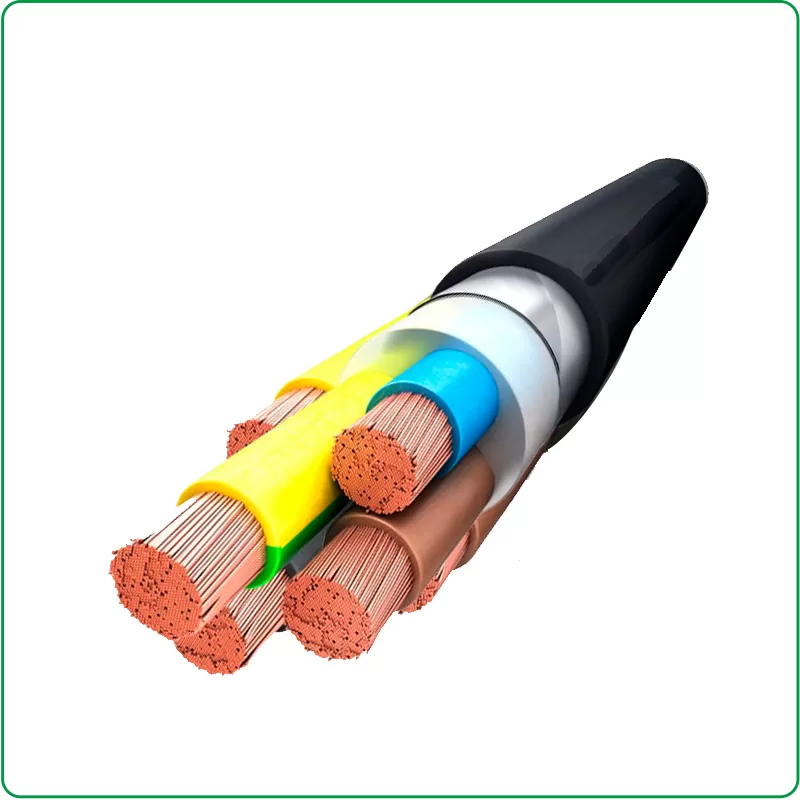

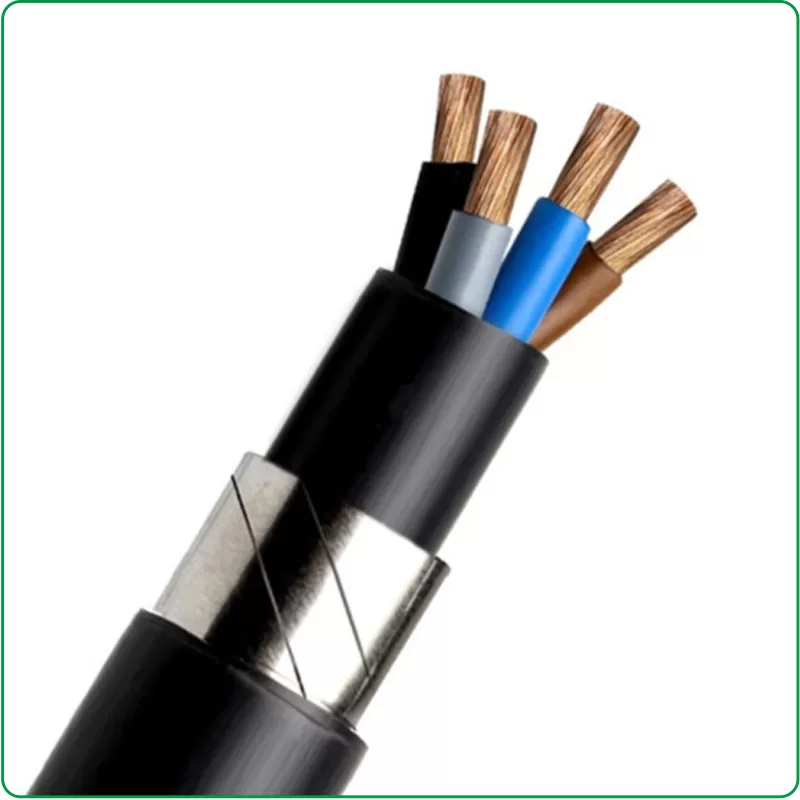

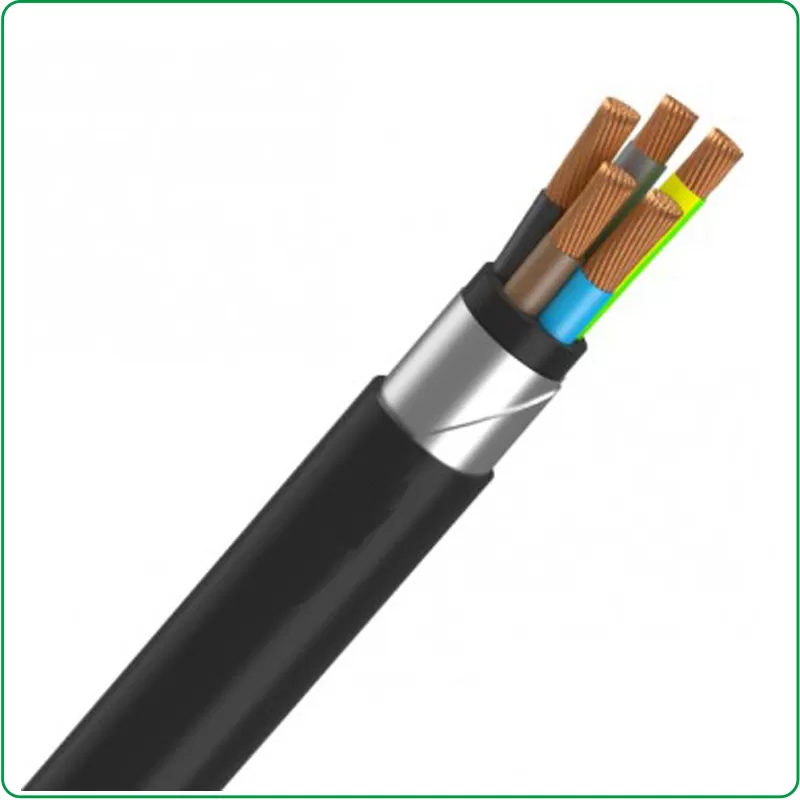

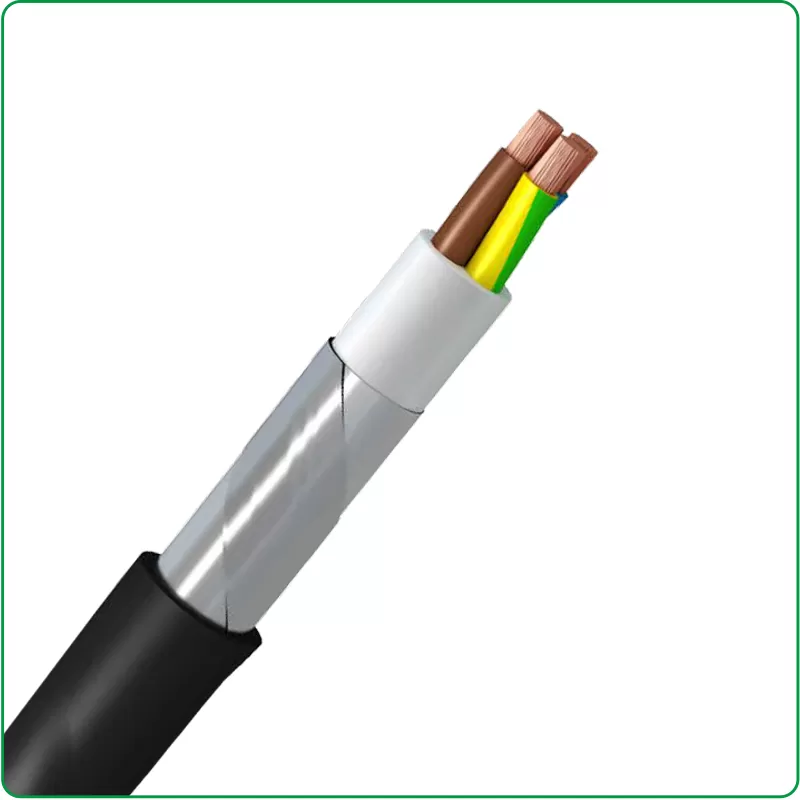

CONSTRUCTION

RVFV-K,CU/XLPE/PVC/DSTA/PVC Low Voltage armoured cables

Description: RVFV-K,XLPE Insulated Copper Flexible Power Cable

Conductors: Class 5 bare copper wires in accordance with lEC 60228.

Insulation:Cross-linked polyethylene XLPE

Filler: Non-hygroscopic Material

Amour Bedding: PVC

Metallic Amour: Double steel tape armour

Outer sheath: Extruded Polyvinyl Chloride PVC

Colour of Sheath: Black

(other colours available on request)

Rated Voltage (Uo/U): 600/1000V

Test Voltage: 3.5 kV for 5 minutes

Physical Properties

Maximal operating conductor Temperature: up to 90℃

Minimum Service Temperature: -40℃

Short Circuit Temperature(5 seconds maximum duration): 250℃

STANDARDS

Basic design to IEC 60502-1& GB/T 12706.1

TECHNICAL DATA

Nominal Cross Section (mm²)	Insulation Thickness (mm)	Sheath Thickness (mm)	External Diameter (mm)	Approx.Weight (kg/km)	Open Air 30℃ (A)	Buried 20℃ (A)	Voltage Drop (V/A·km)	Max. Resistance at 20 ℃ (Ω/km)
1x16	0.7	1.4	14.4	370	101	79	2.55	1.15
1x25	0.9	1.4	16	485	135	101	1.61	0.727
1x35	0.9	1.4	17.1	595	169	122	1.16	0.524
1x50	1	1.4	18.6	730	207	144	0.86	0.387
1x70	1.1	1.4	20.3	960	268	178	0.594	0.268
1x95	1.1	1.5	22.4	1255	328	211	0.428	0.193
1x120	1.2	1.5	24.4	1510	383	240	0.339	0.153
1x150	1.4	1.6	26.3	181	444	271	0.275	0.124
1x185	1.6	1.6	28.3	2215	510	304	0.22	0.0991
1x240	1.7	1.7	31.3	2805	607	351	0.167	0.0754
1x300	1.8	1.8	34	3420	703	396	0.133	0.0601
2x1.5	0.7	1.8	12.3	225	26	26	31	12.1
2x2.5	0.7	1.8	13.2	270	36	34	19	7.41
2x4	0.7	1.8	14.1	320	49	44	11.8	4.61
2x6	0.7	1.8	15.7	420	63	56	7.88	3.08
2x10	0.7	1.8	17.1	530	86	73	4.68	1.83
2x16	0.7	1.8	18.6	690	115	95	2.94	1.15
3x1.5	0.7	1.8	12.8	255	23	22	26.8	12.1
3x2.5	0.7	1.8	13.8	300	32	29	16.4	7.41
3x4	0.7	1.8	15.1	380	42	37	10.2	4.61
3x6	0.7	1.8	16.4	485	54	46	6.83	3.08
3x10	0.7	1.8	17.8	630	75	61	4.06	1.83
3x16	0.7	1.8	19.6	845	100	79	2.55	1.15
3x25	0.9	1.8	23.9	1270	127	101	1.61	0.727
3x35	0.9	1.8	26.2	1630	158	122	1.16	0.524
3x50	1	1.8	29.8	2105	192	144	0.86	0.387
3x70	1.1	1.9	33.3	2755	246	178	0.594	0.268
3x95	1.1	2	40.1	3960	298	211	0.428	0.193
3x16+1x10	0.7/0.7	1.8	-	-	100	79	2.55	1.15/1.83
3x25+1x16	0.9/0.7	1.8	25	1355	127	101	1.61	0.727/1.15
3x35+1x16	0.9/0.7	1.8	27.3	1695	158	122	1.16	0.524/1.15
3x50+1x25	1.0/0.9	1.8	31.5	2315	192	144	0.86	0.387/0.727
3x70+1x35	1.1/0.9	1.9	36	3120	246	178	0.594	0.268/0.524
3x95+1x50	1.1/1.0	2.1	41.6	4425	298	211	0.428	0.193/0.387
3x120+1x70	1.2/1.1	2.2	46.8	5895	346	240	0.339	0.153/0.268
3x150+1x70	1.4/1.1	2.3	51.5	7005	399	271	0.275	0.124/0.268
3x185+1x95	1.6/1.1	2.5	56.5	8730	456	304	0.22	0.0991/0.193
3x240+1x120	1.7/1.2	2.7	63.4	11040	538	351	0.167	0.0754/0.153
3x300+1x150	1.8/1.4	2.9	70.2	12905	621	396	0.133	0.0601/0.124
4x1.5	0.7	1.8	13.8	290	23	22	26.8	12.1
4x2.5	0.7	1.8	14.7	350	32	29	16.4	7.41
4x4	0.7	1.8	16	435	42	37	10.2	4.61
4x6	0.7	1.8	17.4	540	54	46	6.83	3.08
4x10	0.7	1.8	19.6	750	75	61	4.06	1.83
4x16	0.7	1.8	21.8	1020	100	79	2.55	1.15
4x25	0.9	1.8	26.3	1490	127	101	1.61	0.727
4x35	0.9	1.8	29.1	1965	158	122	1.16	0.524
4x50	1	1.9	33.7	2645	192	144	0.86	0.387
4x70	1.1	2	39.4	3910	246	178	0.594	0.268
4x95	1.1	2.1	43	4900	298	211	0.428	0.193
5x1.5	0.7	1.8	14.7	330	23	22	26.8	12.1
5x2.5	0.7	1.8	15.7	400	32	29	16.4	7.41
5x4	0.7	1.8	17.2	505	42	37	10.2	4.61
5x6	0.7	1.8	18.7	630	54	46	6.83	3.08
5x10	0.7	1.8	21.4	910	75	61	4.06	1.83
5x16	0.7	1.8	24.1	1255	100	79	2.55	1.15
5x25	0.9	1.8	28.3	1790	127	101	1.61	0.727
5x35	0.9	1.8	31.5	2355	158	122	1.16	0.524
5x50	1	2	37.1	3255	192	144	0.86	0.387
5x70	1.1	2.1	42.5	4725	246	178	0.594	0.268
5x95	1.1	2.3	47.9	6065	298	211	0.428	0.193
5x120	1.2	2.4	53.5	7580	346	240	0.339	0.153
5x150	1.4	2.6	59.5	9300	399	271	0.275	0.124

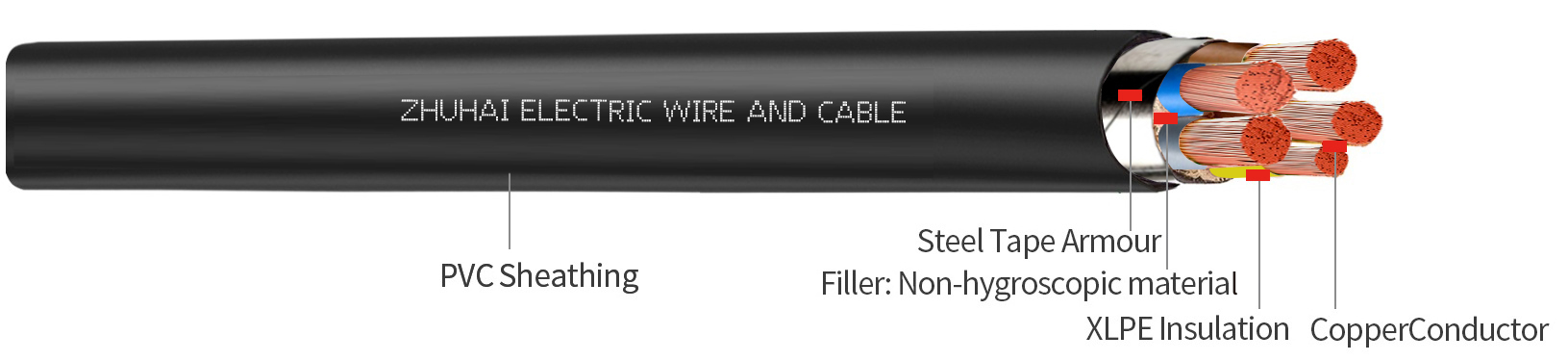

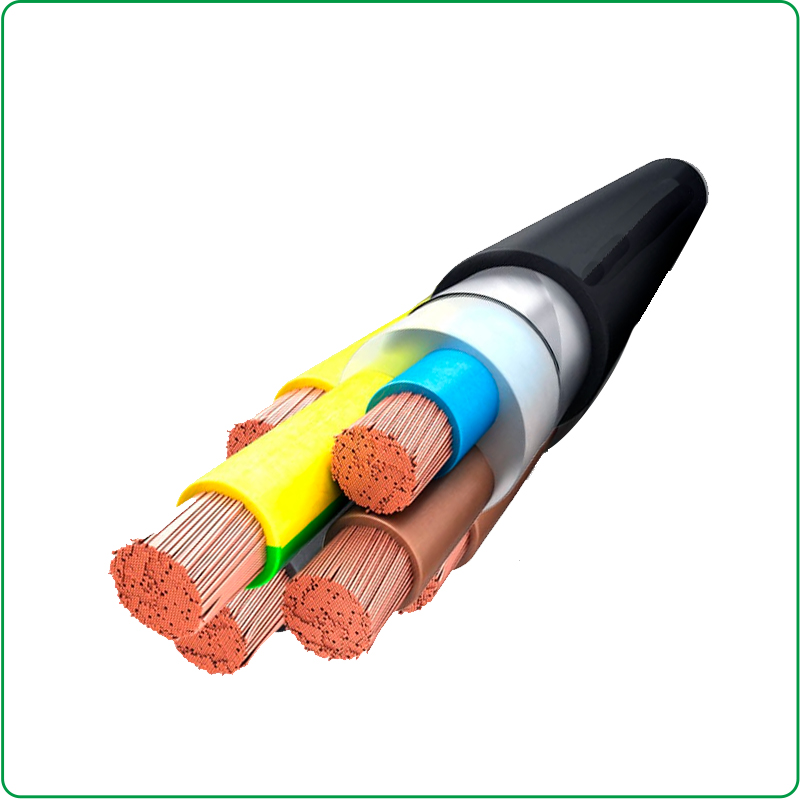

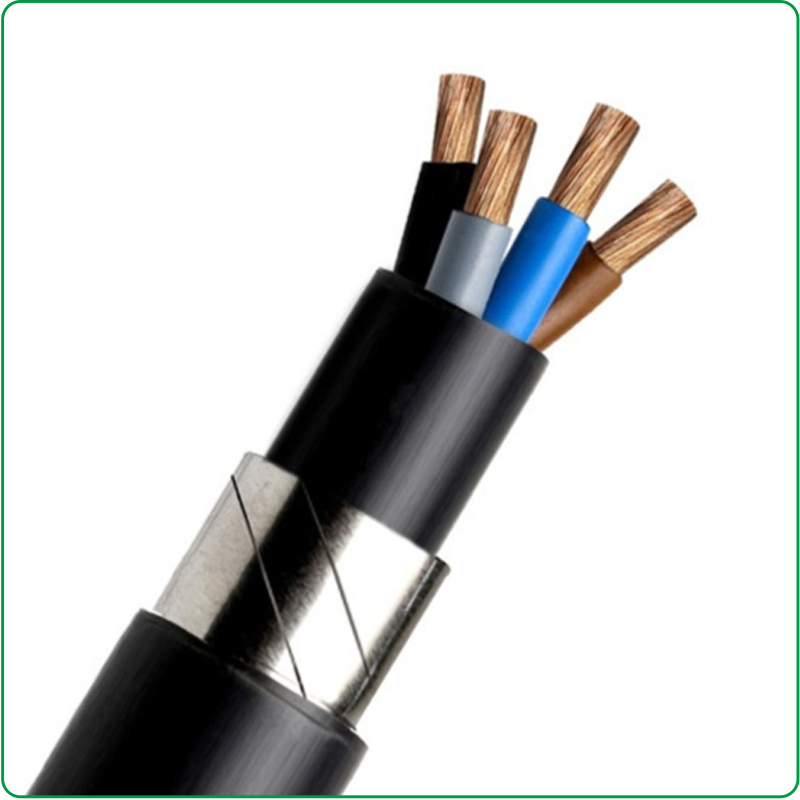

CU/XLPE/PVC/DSTA/PVC Low Voltage RVFV-K cables
