RVMV-K CU/XLPE/PVC/SWA/PVC Power Cable

Applications

RVMV-K is used for low-voltage installations, especially for industry, factories, oil refineries, stables, feeding installations(for animals), or where there is a possibility for rodent attack etc. It can also be used for ship installations and generator installations.The cable is UV-resistant and is suited for outdoor use. Conductor insulation is not suitable for direct light exposure. Suitable for the following installations:

● underground networks for low voltage distribution

● outdoor lighting installations

● indoor or receiver installations

● installations in premises with special characteristics

For any more information or advice, please contact the office on 0086-18832134509 (WhatsApp/WeChat)

Inquire Now

Details

Overview

Zhuhai RVMV-K cables, manufactured with steel wire armoured, which provides a huge protection against rodents andmechanical damages, are indicated for transporting and distributing low voltage power. It is recommended for industrialconnections, service connections, internal distribution and outdoor connections and especially in premises with a high risk of fire and explosion like gas stations, petrochemical plants, flammable product storages. At the same time, it can be used in installations such as production plants, agricultural facilities, street lighting and installations in general where the cable issubject to risk of mechanical aggression.

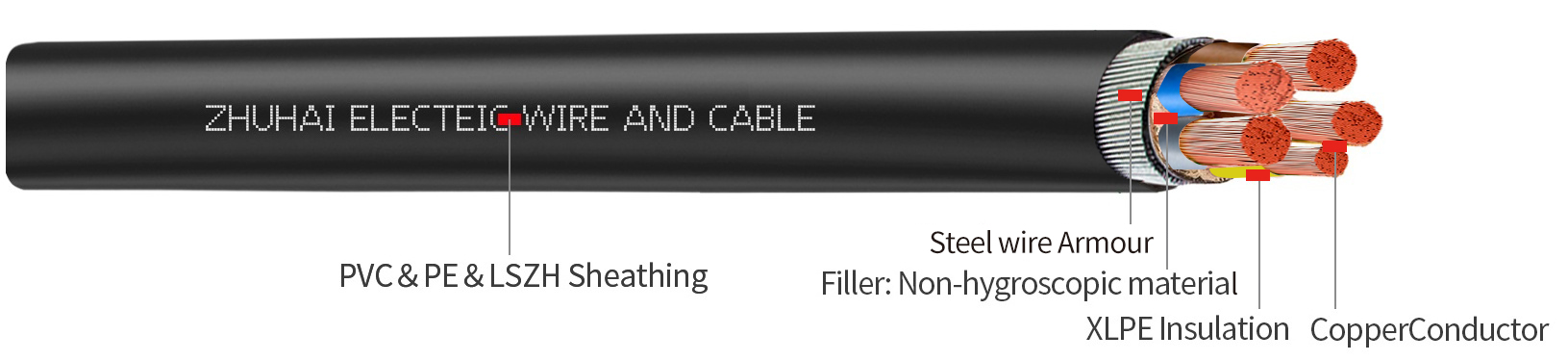

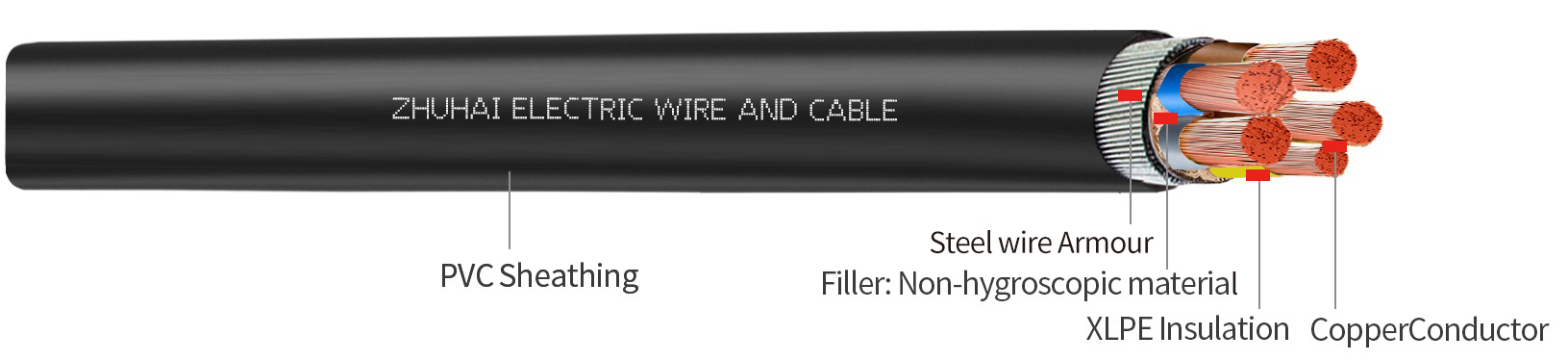

CONSTRUCTION

Description: RVMV-K, XLPE Insulated Copper Flexible Power Cable

Conductors: Class 5 bare copper wires in accordance with lEC 60228.

Insulation: Cross-linked polyethylene XLPE

Filler: Non-hygroscopic Material

Amour Bedding: PVC

Metallic Amour: Galvanised steel wire armour

Outer sheath: Extruded Polyvinyl Chloride PVC

Colour of Sheath: Black

(other colours available on request)

Rated Voltage (Uo/U): 600/1000V

Test Voltage: 3.5 kV for 5 minutes

Physical Properties

Maximal operating conductor Temperature: up to 90℃

Minimum Service Temperature: -40℃

Short Circuit Temperature(5 seconds maximum duration): 250℃

STANDARDS

Basic design to IEC 60502-1& GB/T 12706.1

TECHNICAL DATA

Nominal Cross Section (mm²)	Insulation Thickness (mm)	Sheath Thickness (mm)	External Diameter (mm)	Approx.Weight (kg/km)	Open Air 30℃ (A)	Buried 20℃ (A)	Voltage Drop (V/A·km)	Max. Resistance at 20 ℃ (Ω/km)
2x1.5	0.7	1.4	12.8	322	26	26	31	12.1
2x2.5	0.7	1.4	13.6	365	36	34	19	7.41
2x4	0.7	1.4	14.6	430	49	44	11.8	4.61
2x6	0.7	1.4	15.7	506	63	56	7.88	3.08
2x10	0.7	1.5	17.8	664	86	73	4.68	1.83
2x16	0.7	1.6	20.1	860	115	95	2.94	1.15
3x1.5	0.7	1.4	13.3	345	23	22	26.8	12.1
3x2.5	0.7	1.4	14.1	400	32	29	16.4	7.41
3x4	0.7	1.4	15.2	478	42	37	10.2	4.61
3x6	0.7	1.4	16.4	570	54	46	6.83	3.08
3x10	0.7	1.5	18.7	770	75	61	4.06	1.83
3x16	0.7	1.6	22.7	1320	100	79	2.55	1.15
3x25	0.9	1.7	26.4	1765	127	101	1.61	0.727
3x35	0.9	1.8	29.2	2203	158	122	1.16	0.524
3x50	1	2.0	33.1	2840	192	144	0.86	0.387
3x70	1.1	2.1	38.9	4074	246	178	0.594	0.268
3x95	1.1	2.3	42.4	4881	298	211	0.428	0.193
3x95+1x50	1.1/1.0	1.7	42.2	5427	298	211	0.428	0.193/0.387
3x120+1x70	1.2/1.1	2.0	46.8	6700	346	240	0.339	0.153/0.268
3x150+1x70	1.4/1.1	2.0	53.1	7765	399	271	0.275	0.124/0.268
3x185+1x95	1.6/1.1	2.2	58.7	9655	456	304	0.22	0.0991/0.193
3x240+1x120	1.7/1.2	2.2	62.3	12440	538	351	0.167	0.0754/0.153
4x1.5	0.7	1.4	14.1	386	23	22	26.8	12.1
4x2.5	0.7	1.4	15	457	32	29	16.4	7.41
4x4	0.7	1.4	16.4	555	42	37	10.2	4.61
4x6	0.7	1.4	17.8	665	54	46	6.83	3.08
4x10	0.7	1.5	20.3	914	75	61	4.06	1.83
4x16	0.7	1.6	24.6	1552	100	79	2.55	1.15
4x25	0.9	1.4	28.7	2095	127	101	1.61	0.727
4x35	0.9	1.4	31.8	2644	158	122	1.16	0.524
4x50	1	1.4	37	3680	192	144	0.86	0.387
4x70	1.1	1.4	42.5	4900	246	178	0.594	0.268
5x1.5	0.7	1.4	14.9	427	23	22	26.8	12.1
5x2.5	0.7	1.5	16.2	517	32	29	16.4	7.41
5x4	0.7	1.5	17.5	626	42	37	10.2	4.61
5x6	0.7	1.6	19.2	774	54	46	6.83	3.08
5x10	0.7	1.7	23.6	1373	75	61	4.06	1.83
5x16	0.7	1.8	26.6	1796	100	79	2.55	1.15
5x25	0.9	1.9	31.1	2444	127	101	1.61	0.727
5x35	0.9	2.0	35.4	3338	158	122	1.16	0.524
5x50	1	2.2	40.2	4316	192	144	0.86	0.387
