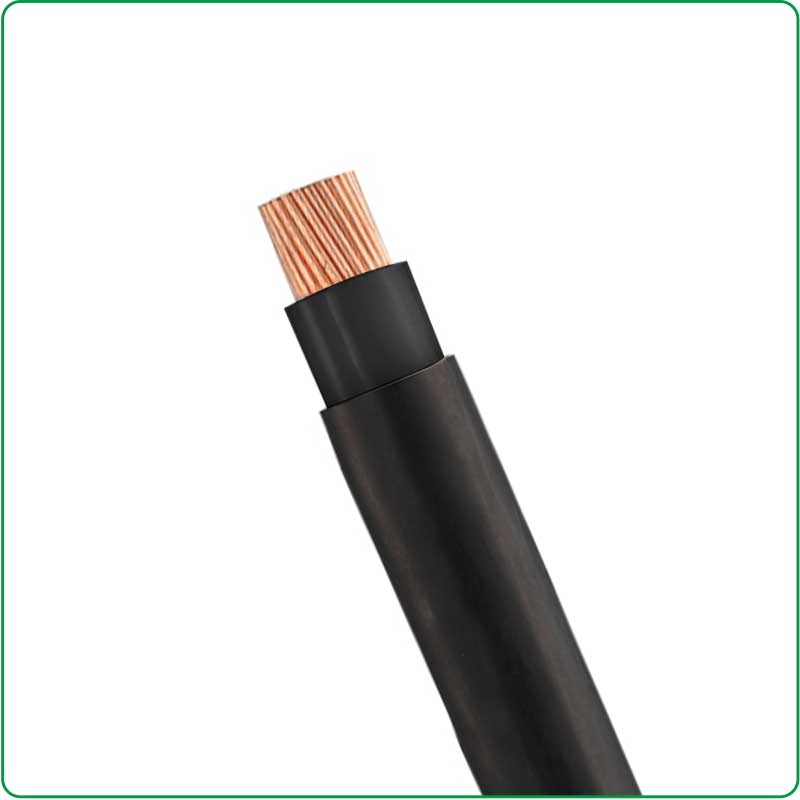

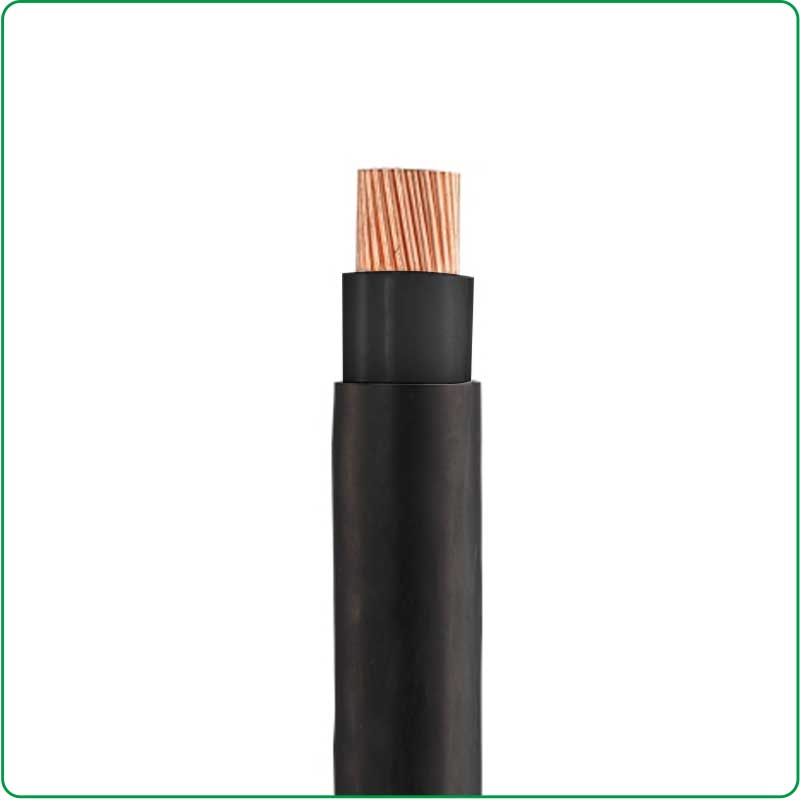

XLPE Single Core Copper Cable 0.6/1kV Power Cable

Our Advantages:

High-quality XLPE copper single core cable with oxygen-free copper conductor & cross-linked polyethylene insulation. Heat-resistant, corrosion-proof, 40+ year service life. Suitable for power transmission, construction, industrial use. CE,certified.

Details

XLPE Insulated,PVC Sheathed Cable,0.6/1kV

The 0.6/1KV CU/XPLE/PVC cable plays a vital role in low-voltage power transmission and distribution, widely applied in building,industrial, and infrastructure settings to ensure the reliability and safety of power systems. This Power Cable with stranded compacted copper conductor(CU), cross-linked polyethylene insulation (XPLE), and a polyvinyl chloride sheath (PVC). For fixed installation in interiors,outdoor installation,in soil,in water and concrete,if no posterior mechanical damage is to be expected.

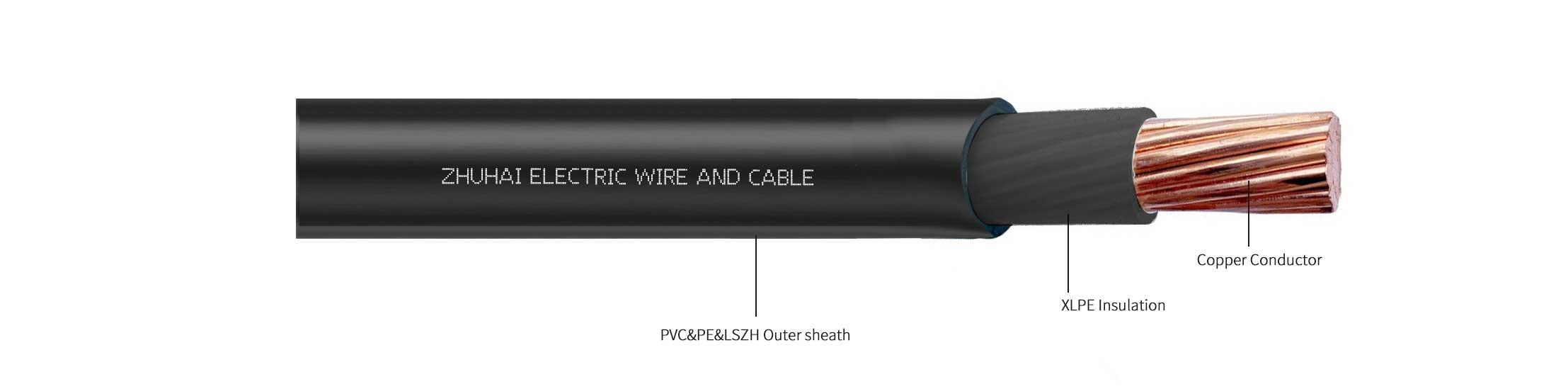

Construction

Description:	CU/XPLE/PVC Copper Power Cable
Rated Voltage	0.6/1kV
Conductor Material	Oxygen-Free Copper (Class 1/2)
Insulation Material	XLPE (Cross-Linked Polyethylene)
Sheath Material	PVC (Black) / LSZH (Optional)
Number of Cores	1 Core
Cross-Section Range	1.5mm² – 800mm²
Standard Color	Insulation: Red/Black; Sheath: Black
Operating Temp.	Max. 90°C (Continuous); 130°C (Emergency); 250°C (Short-Circuit, ≤5s)
Installation Temp.	≥ -5°C (Pre-heat if below 0°C)
Bending Radius	≥ 15 × Cable Outer Diameter
Test Voltage	AC 3.5kV / 5min

Technical Data

0.6/1kV-XLPE Single Core Copper Cable 0.6/1kV Power Cable
No. of cores and nominal cross section	Conductor Structure (No./Dia.)	Insulation Thickness	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	(A, Air)
1X1.5	1/1.38	0.7	5.6	43	12.1	20
1X2.5	1/1.78	0.7	6.2	65	7.41	28
1X4	1/2.25	0.7	7.0	95	4.61	37
1X6	1/2.76	0.7	7.8	135	3.08	48
1X10	7/1.35	0.7	9.2	215	1.83	65
1X16	7/1.7	1.0	11.0	320	1.15	85
1X25	7/2.14	1.0	13.0	485	0.727	113
1X35	7/2.52	1.0	14.5	665	0.524	138
1X50	19/1.78	1.2	16.5	925	0.387	173
1X70	19/2.14	1.2	19.0	1280	0.268	215
1X95	19/2.52	1.4	21.5	1750	0.193	260
1X120	37/2.03	1.4	24.0	2200	0.153	300
1X150	37/2.25	1.6	26.5	2750	0.124	340
1X185	37/2.52	1.6	29.5	3400	0.0991	385
1X240	61/2.25	1.7	33	4400	0.0754	450
1X300	61/2.52	1.8	36.5	5500	0.0601	515
