Overhead Cable Wires is also known as covered line wire AAC(Aluminum Conductor) with XLPE insulation. Its mainly applications are:
● Crossing of telecommunication lines to guard against contact;
● Proximities to telecommunication lines to guard against contact;
● Lines (particularly service lines) accessible from buildings.
For any more information or advice please contact the office on 0086-18832134509 (WhatsApp/WeChat)
Details
The XLPE&HDPE - covered conductors have been developed primarily to give protection to telecommunication lines which are crossed by power lines and to give protection to the public from low voltage lines in case of accidental contact for short periods.The XLPE&HDPE - covered power lines have also been found useful in corrosive atmospheres and for preventing faults due to birds and trees. The conductors are sometimes referred to as”Wheather-Resistant Line Wire” and may consist of a single solid wire, or all aluminum stranded conductors (AAC) over which a covering has been applied.
Construction

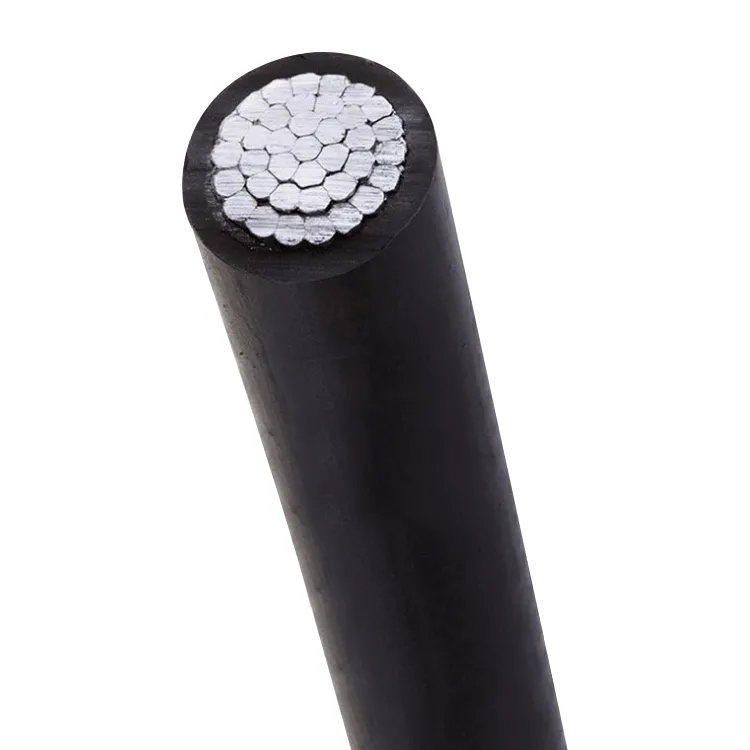

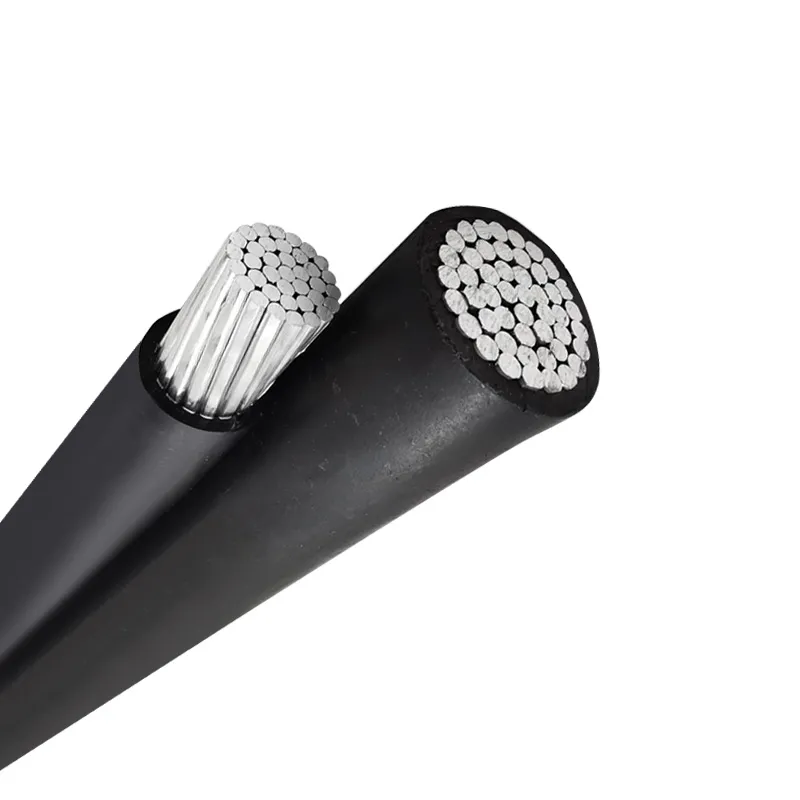

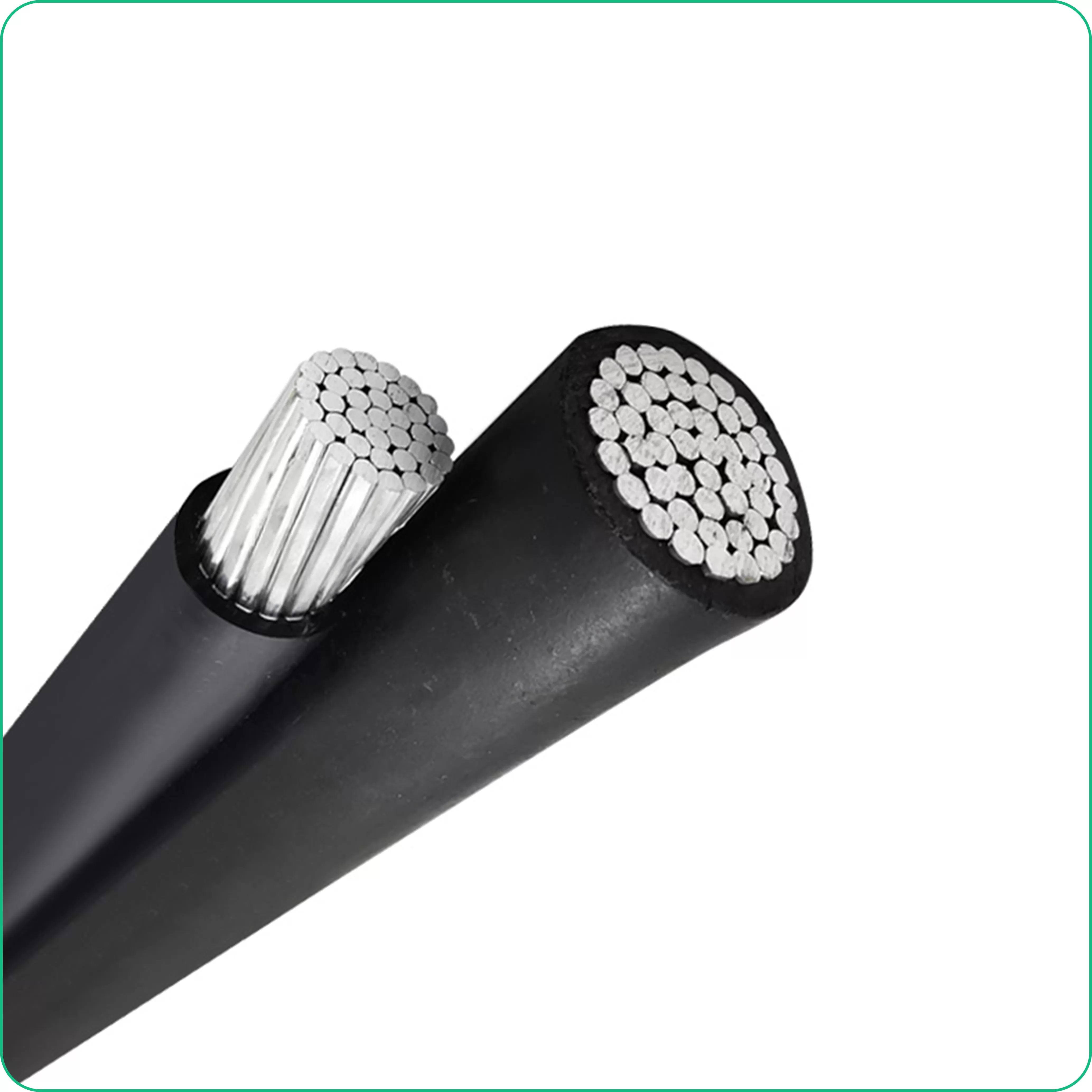

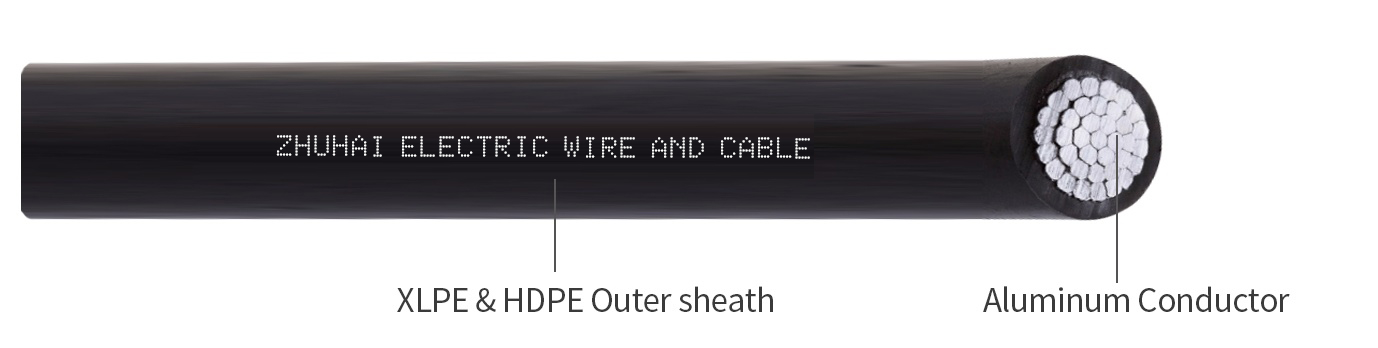

Description: Overhead Cable, XLPE Sheathed Aluminum Stranded Conductor
Conductor: Class 2 Stranded Aluminum Conductor
Insulation: XLPE or HDPE Insulation
Insulation Color: Black
Rated Voltage (Uo/U): 0.6/1KV
Physical Properties
Maximal operating conductor Temperature: up to 70℃(PVC insulation); up to 90℃(XLPE insulation)
Operating Temperature Range: -5℃(PVC or LSZH sheath); -20℃(PE sheath)
Short Circuit Temperature(5 seconds maximum duration): 140℃-160℃(PVC insulation);250℃(XLPE insulation)

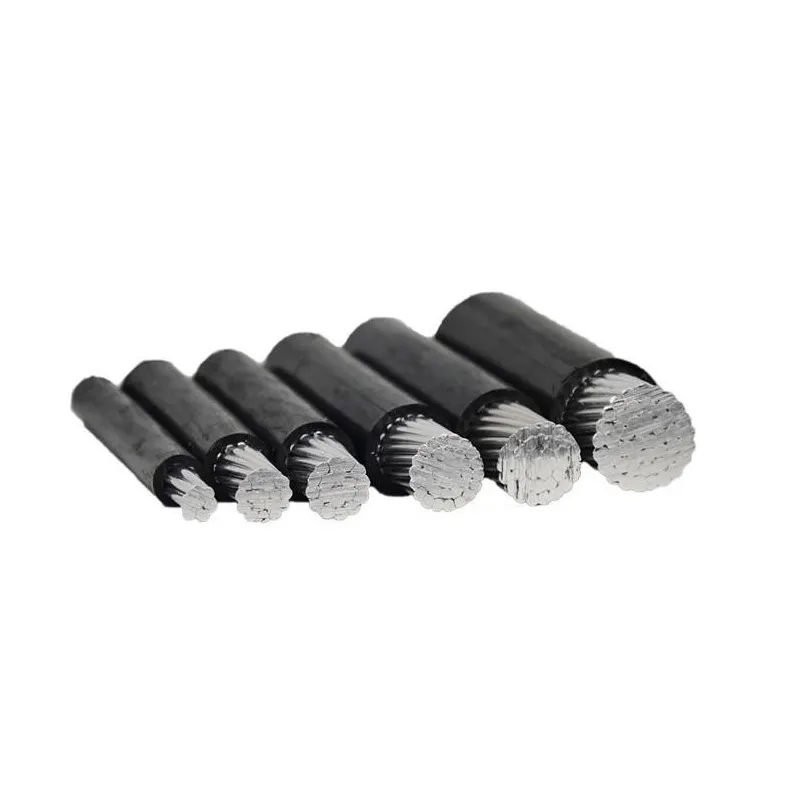

Technical Data
Nominal Area | Wires No. | Wires Dia. | Overall Dia. | Total Weight | Nominal Breaking Load | Max. D.C Resistance at t 20℃ | Packing Length |
mm² | mm | mm | kg/km | kN | Ω/km | m±5% | |
16 | 7 | 1.7 | 7.3 | 77 | 2.84 | 1.91 | 3000 |
25 | 7 | 2.1 | 8.5 | 108 | 4.17 | 1.2 | 3000 |
35 | 7 | 2.52 | 9.7 | 143 | 5.78 | 0.868 | 3000 |
50 | 10 | 2.52 | 11.2 | 187 | 8.45 | 0.641 | 3000 |
70 | 14 | 2.52 | 12.7 | 243 | 11.32 | 0.443 | 2000 |
95 | 19 | 2.52 | 14.7 | 333 | 15.68 | 0.32 | 2000 |
120 | 24 | 2.52 | 16.2 | 410 | 18.78 | 0.253 | 2000 |
150 | 30 | 2.52 | 17.9 | 498 | 25.3 | 0.206 | 2000 |
185 | 37 | 2.52 | 19.7 | 606 | 30.54 | 0.164 | 2000 |
240 | 48 | 2.52 | 22.4 | 787 | 39.51 | 0.125 | 2000 |
