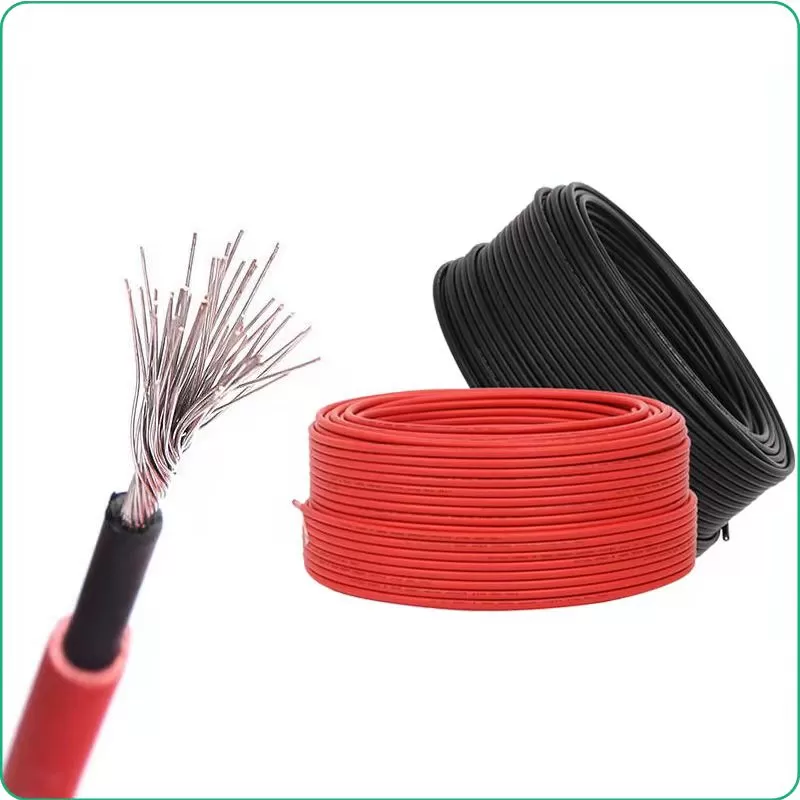

Solar Cable
Solar Cable
Applications
Solar cables have various applications in solar power systems and related industries. Here are some of the primary applications:
● Photovoltaic (PV).
● Residential Solar Installations
● Commercial and Industrial Solar Systems
● Solar Street Lighting
● Off-Grid Solar Systems.
● Solar Water Pumping
● Solar Thermal Systems
Suitable for use indoor or outdoor for connection between solar panels or between panels and invertor.
Our PV cables meet TUV certification and can be manufactured in both H1Z2Z2-K and PV1-F.
For any more information or advice please contact the office on 0086-18832134509(WhatsApp/WeChat)
Details
Overview XLPO Insulated,XLPO Sheathed PV Cable
Solar cable is designed especially for the interconnection of the various elements in photovoltaic systems. It provides the optimal connection between the solar cells and from the solar cells to the inverter or DC main cable. This Solar cable has been tested to last 25 years. It is also ozone-resistant, UV-resistant and tested for durability according to EN 60216, demonstrating its high quality and suitability for purpose. Due to its halogen free, flame retardant and low smoke properties, the cable will not give out toxic emissions in the event of a fire.

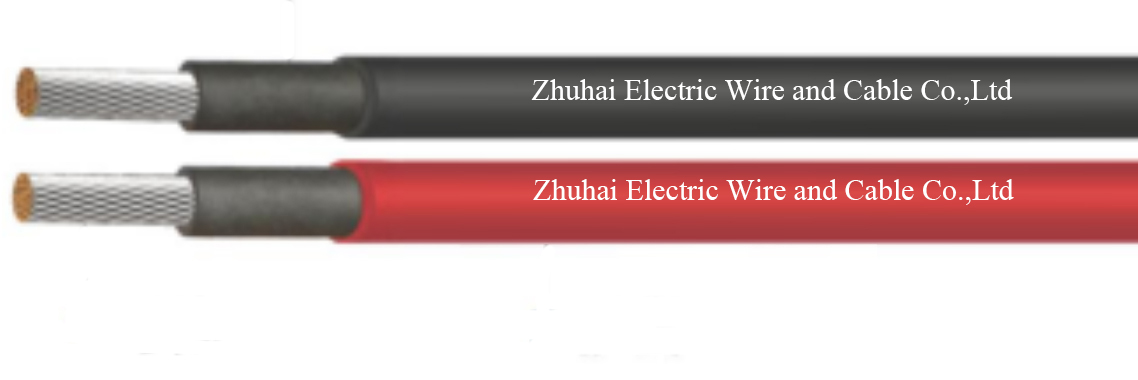

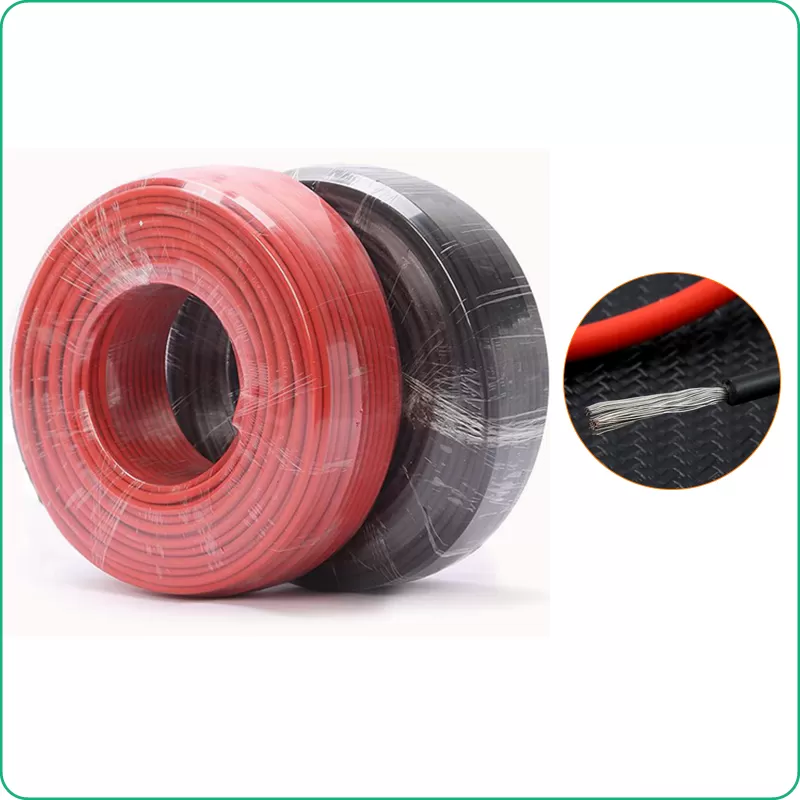

Construction
Description: PV Cable
Conductors: Tinned fine copper strands acc.to IEC60228 Class 5
Insulation: XLPO,flame retardant,halogen free electron-beam cross-linked.
Insulation Colour: White or Black
Outer Sheath: XLPO,flame retardant,halogen free electron-beam cross-linked
Colour of Sheath: Red & Black
Voltage Rating (Uo/U): DC1500V, Max. 1.8kV
Test Voltage: AC6.5kV 50Hz 5 minutes
Physical Properties
Short Circuit Temperature(5 seconds maximum duration): 250℃（XLPE insulation)
Technical Data
| SOLAR CABLE | ||||
| Cross Section | Conductor ∅ | Outer ∅ | Current-carrying capacity at 60℃ | Conductor resistance at 20℃ |
| mxmm² | mm | mm | A | KΩ/km |
| 1x1.5 | 1.4 | 4.2 | 30 | 13.7 |
| 1x2.5 | 1.8 | 5 | 42 | 8.21 |
| 1x4 | 2.2 | 5.2 | 55 | 5.09 |
| 1x6 | 2.8 | 5.8 | 70 | 3.39 |
| 1x10 | 4.0 | 7.5 | 98 | 1.95 |
| 1x16 | 5.0 | 8.9 | 132 | 1.24 |
| 1x25 | 6.2 | 10.9 | 176 | 0.795 |
| 1x35 | 7.3 | 12.8 | 218 | 0.565 |
| 1x50 | 8.8 | 14.3 | 280 | 0.393 |
| 1x70 | 11.0 | 16.5 | 350 | 0.277 |
| 1x95 | 12.3 | 18.2 | 410 | 0.210 |
| 1x120 | 14.1 | 20.2 | 480 | 0.164 |
Outdoor & Indoor Use: Suitable for both free and stationary outdoor and indoor installations. Ideal for interconnecting solar modules or linking module strings to DC/AC inverters.
Standards Compliance: Meets the requirements of HD 60364-7-712 for photovoltaic (PV) systems and EN 50618 for H1Z2Z2-K cable type.
Protection Features: Provides protection against short circuits and earth faults, complying with EN 50618, Annex A, and HD 60364-5-52.
Voltage Rating: Designed for use in photovoltaic systems with a DC voltage up to 1800 V to ground.
Installation Flexibility: Can be installed inside electrical pipes, ducts, or channels, as well as within plaster or connected to double-insulated appliances or systems with protection class II.
Water Resistance: Rated for permanent water contact and can withstand submersion up to 1 meter in water depth, as per AD8 requirements.
