High-temperature resistant,Oil-resistant flexible Cable H05RN-F Rubber cable

Applications

HO5RN-F cable is a light use flexible rubber insulated EPR(Ethylene Propylene Rubber) jacketed electrical cable,rated at a maximum of 60°C and must not be permitted to come into direct contact with any high temperature surface or component. It is safe to use at much lower temperatures than a PVC cable, being rated to operate at temperatures as low as -25 degrees Celsius. Commonly suitable for application in:

● Connection cable for use in dry,damp and wet rooms as well as outdoors;

● Any other medium duty electrical or electronic equipment

● For connecting appliances in households,kitchen appliances and other portable household and garden equipment

● For involving light mechanical stress(e.g.hoovers, kitchen appliances and other portable household and garden equipment)

For any more information or advice please contact the office on 0086-18832134509(WhatsApp/WeChat)

Inquire Now WhatsApp

Details

Overview

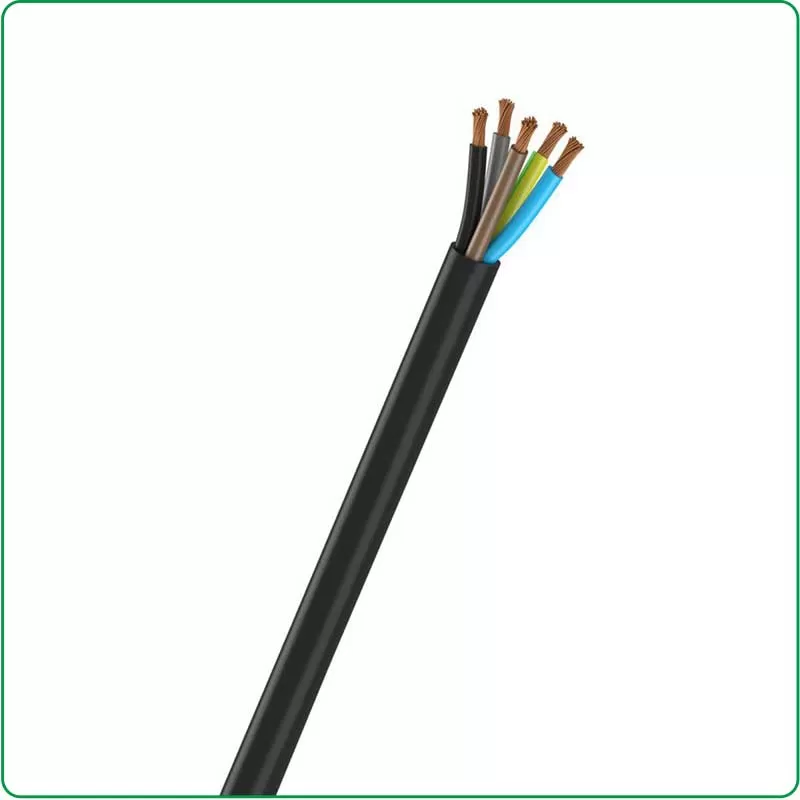

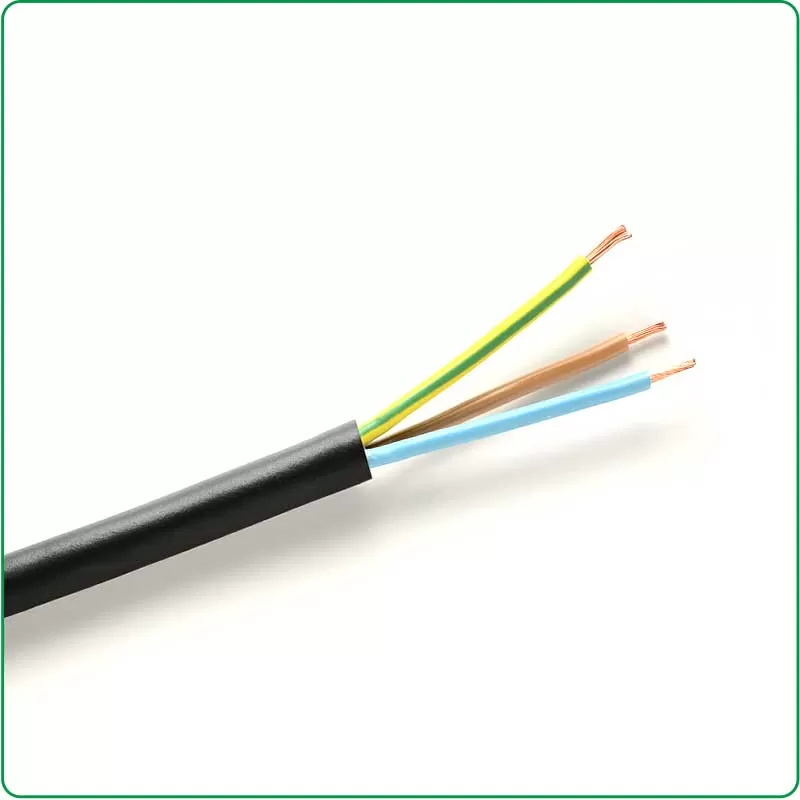

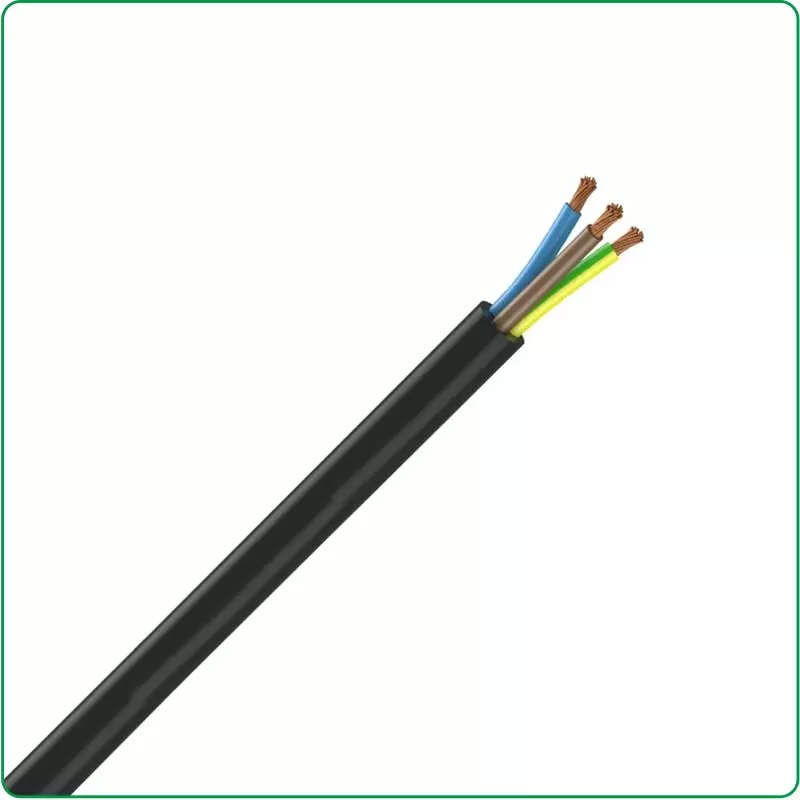

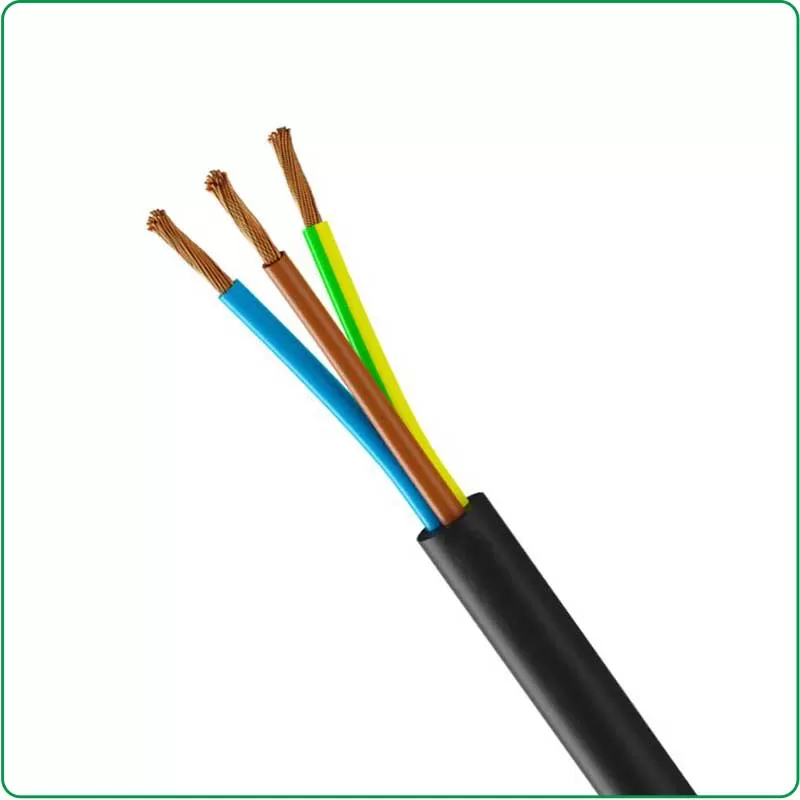

H05RN-F Rubber Cable

The H05RN-F cable is a low voltage rubber sheathed power cable for flexible trailing applications. The H05RN-F is the smaller size variant of the H07RN-F 450/750V cable. H05RN-F cables have a voltage rating of 300/500V and are available in smaller conductor cross-sectional area sizes. Here, the Class 5 flexible copper conductors are provided in 0.75mm2 and 1mm2 only. It is available in 2 core, 3 core, 4 core and 5 core variants as standard.This harmonised cable is suitable for light-duty applications subject to low mechanical strain, for both indoors and temporary outdoor installations. They can be used in dry, damp and wet environments.

The H05RN-F cable is commonly specified on portable handheld household equipment, workshop tools such as soldering irons, furniture, and in the construction industry predominantly in pre-fabricated building parts. It has an operating temperature range of -40℃ to +60℃ and with its outer sheath is both ozone resistant, oil resistant and flame retardant.

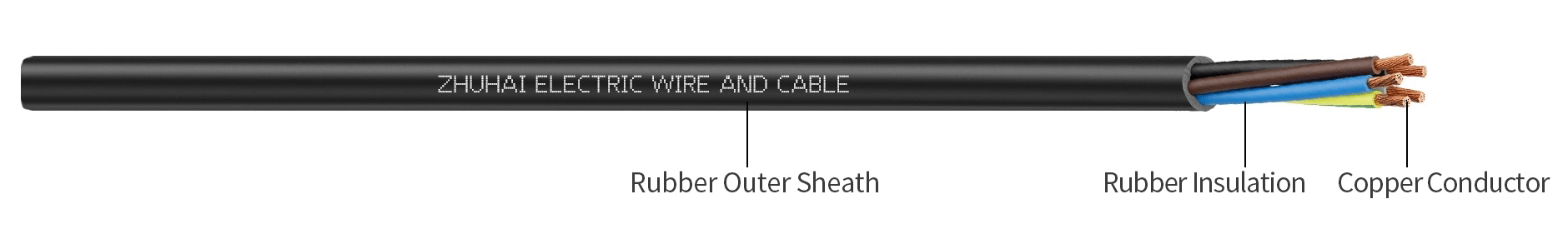

Construction

Description: H05RN-F Light Use Flexible Rubber Insulated Cable

Conductors: Class 5 flexible stranded copper

Insulation: Rubber insulation

Sheath: Rubber

Voltage Rating (Uo/U)： 300/500V

Physical Properties

Operating: -40℃ to +60℃

Minimum installation and use Temperature: -25℃

Maximum Temperature of short circuit: +200℃

Technical Data

No. of Cores Nominal Cross Sectional Area (#xmm²)	Nominal Thickness of Insulation (mm)	Nominal Overall Diameter (min.-max. mm)	Nominal Weight (kg/km)	Electric resistance at 20℃(Ω/km)
2x0.75	0.6	5.7-7.4	80	26
3x0.75	0.6	6.2-8.1	95	26
4x0.75	0.6	6.8-8.8	105	26
2x1	0.6	6.1-8.0	95	19.5
3x1	0.6	6.5-8.5	115	19.5
4x1	0.6	7.1-9.2	142	19.5
3x1.5	0.8	8.6-11.0	105	13.3
4x1.5	0.8	9.5-12.2	129	13.3
5x1.5	0.8	10.5-13.5	153	13.3
2x1.5	0.8	6.8-8.8	80	13.3
2x2.5	0.9	8.7-11.5	95	7.98
