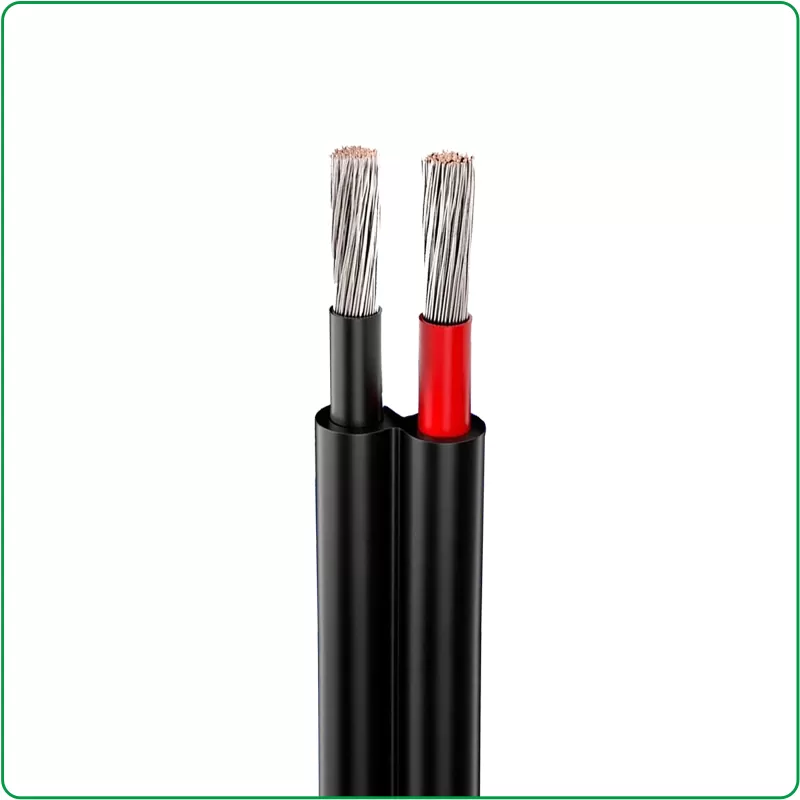

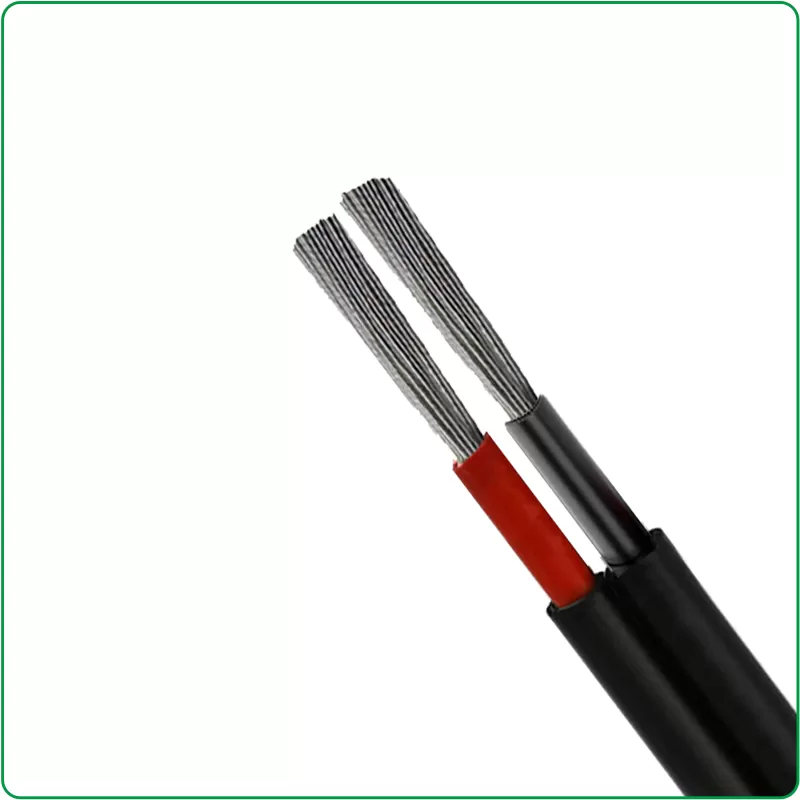

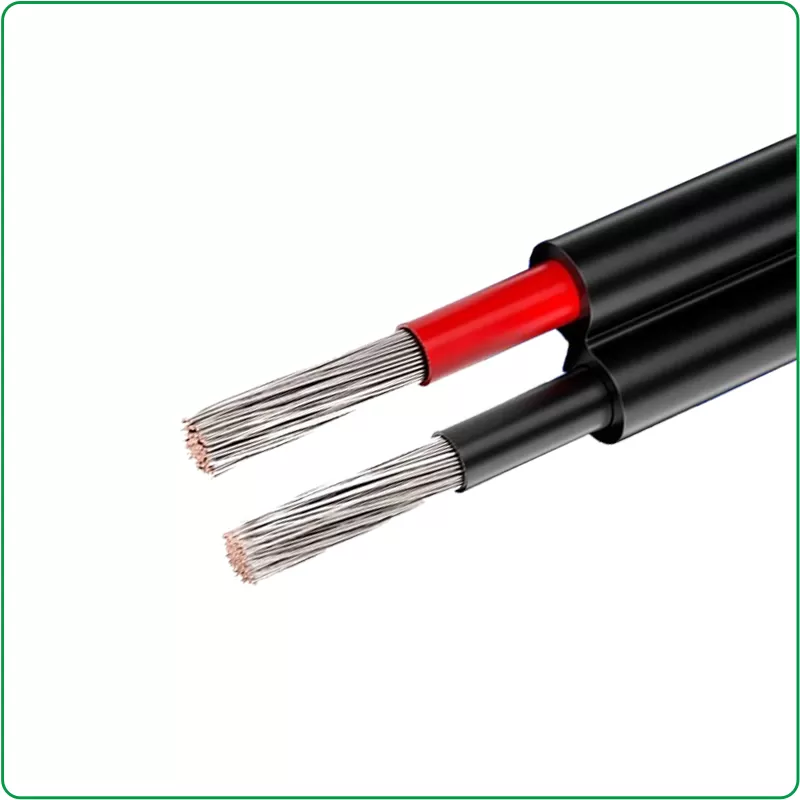

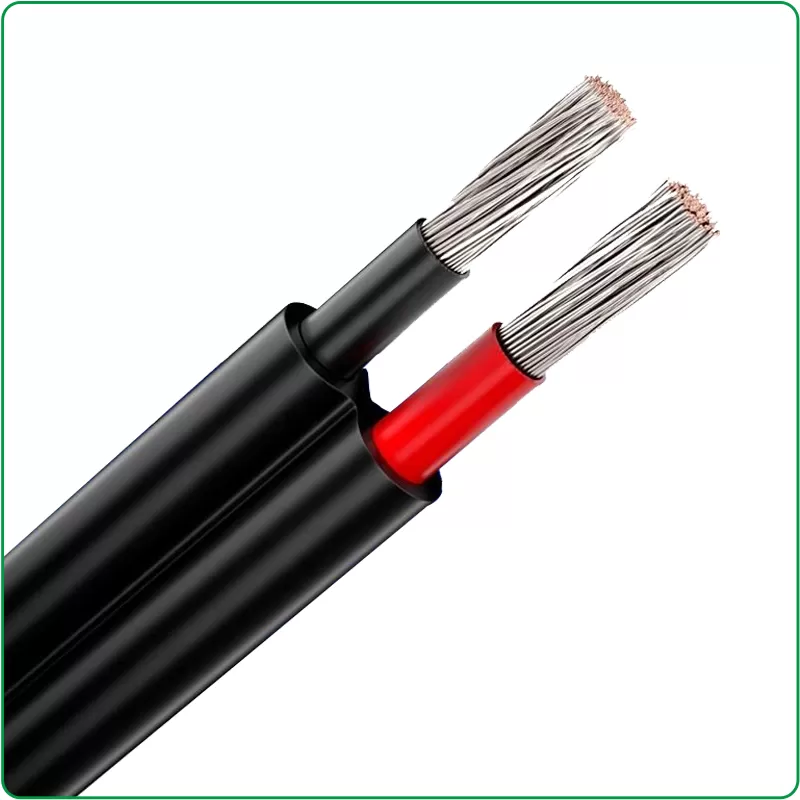

Twin PV Solar Cable For Connnecting PhotoVoltaic(PV) System

Applications

Zhuhai PV Twin core cable is highly flexible cable specially designed for connecting photovoltaic panels, compatible with all major connectors. It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs. Here are some of the primary applications:

● Solar Plants

● Residential Solar Installations

● Commercial and Industrial Solar Systems

● Solar Street Lighting

● Off-Grid Solar Systems

● Solar Water Pumping

● Solar Thermal Systems

Suitable for the interconnection within photovoltaic systems such as solar panel arrays.

For any more information or advice,please contact the office on 0086-18832134509 (WhatsApp/WeChat)

Inquire Now WhatsApp

Details

Polyolefin Copolymer electron-beam cross-linked Twin PV Cable

Twin Solar cable is designed especially for the interconnection of the various elements in photovoltaic systems. It provides the optimal connection between the solar cells and from the solar cells to the inverter or DC main cable. This Solar cable has been tested to last 25 years. It is also ozone-resistant, UV-resistant, demonstrating its high quality and suitability for purpose. Due to its halogen free, flame retardant and low smoke properties, the cable will not give out toxic emissions in the event of a fire.

Construction

Description: Twin PV Cable

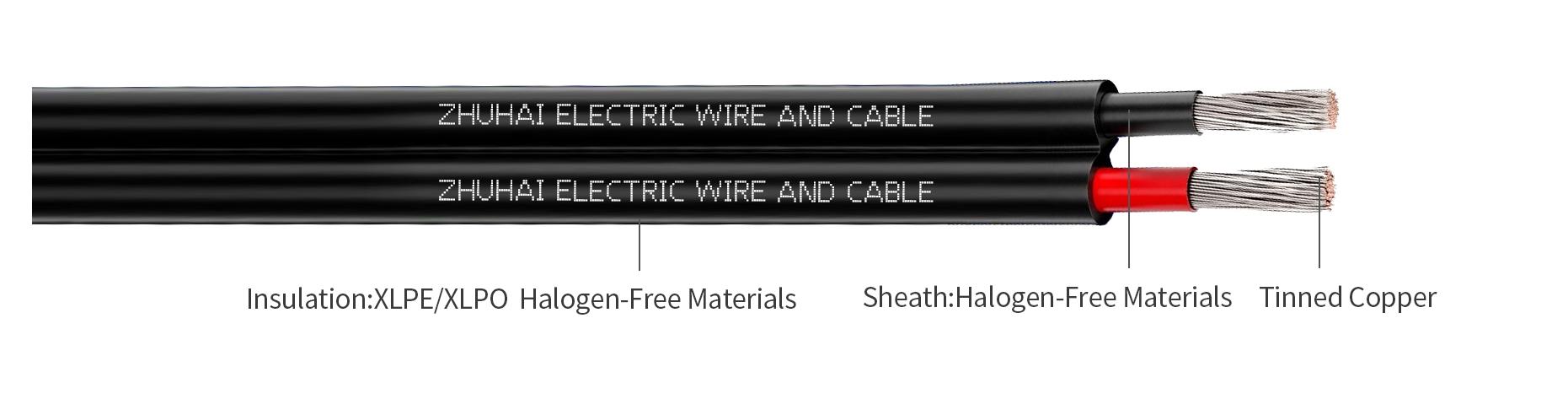

Conductors: Tinned fine copper strands acc.to IEC60228 Class 5

Insulation: XLPO,flame retardant,halogen free electron-beam cross-linked.

Insulation Colour: Red and Black

Outer Sheath: XLPO,flame retardant,halogen free electron-beam cross-linked

Colour of Sheath: Black

Voltage Rating (Uo/U): DC1500V, Max. 1.8kV AC: 0.6/1kV

Test Voltage: AC6.5kV 50Hz 10 minutes

Physical Properties

Short Circuit Temperature(5 seconds maximum duration): 250℃（XLPE insulation)

Technical Data

Cross Section	ConductorΦ	Outer Φ	Current-carrying capacity at 60℃	Conductor resistance at 20℃
mxmm²	mm	mm	A	KΩ/km
1x1.5（16AWG)	1.4	4.2	30	13.7
1x2.5（14AWG)	1.8	5	42	8.21
1x4 （12AWG)	2.2	5.2	55	5.09
1x6 （10AWG)	2.8	5.8	70	3.39
1x10 （8AWG)	4.0	7.5	98	1.95
1x16 （6AWG)	5.0	8.9	132	1.24
1x25 （4AWG)	6.2	10.9	176	0.795
1x35 （2AWG)	7.3	12.8	218	0.565
1x50 （1/0AWG)	8.8	14.3	280	0.393
1x70（2/0AWG)	11.0	16.5	350	0.277
1x95（3/0AWG)	12.3	18.2	410	0.210
1x120（4/0AWG)	14.1	20.2	480	0.164

Twin Core Solar Cable Applications

Utility-Scale Projects: Optimized DC stringing for large-scale arrays, significantly simplifying combiner box integration.

C&I Rooftops: Designed to boost installation speed on commercial roofs by streamlining the cable run from panels to inverters.

Storage and hybrid systems: Compatible with mainstream ESS, ensuring a neat, professional and secure installation.

Key Problems This Product Solves

Harsh Environmental Degradation: It solves the problem of cable failure, insulation breakdown, and safety risks —specifically intense heat and powerful UV radiation.

Complex & Costly Large-Scale Installations: For utility-scale plants, it addresses the challenge of time-consuming and complicated wiring by offering an optimized solution that simplifies DC stringing and combiner box integration.

Inconsistent Performance in Diverse Systems: It provides a single, certified cable solution that ensures reliable, safe, and compatible performance across a wide range of applications, from residential rooftops to commercial buildings and major solar farms, eliminating the need for multiple specialized cables.
