Control&Instrumentation Cable
Control&Instrumentation Cable
Applications
Shielded Twisted Pair Flexible Cable with PVC Sheath balances signal fidelity,mechanical protection,and environmental adaptability, making it a top choice for EMI-sensitive and industrial-grade applications. Its mainly applications are as below:
● Used in transmits control signals and sensor data in machinery (e.g., servo motors, frequency converters), ensuring stability in EMI-heavy environments.
● Connects surveillance cameras, burglar alarms, and access control devices to maintain signal integrity.
● Used in fire alarm systems and smart metering (e.g., electricity/water data collection)
● Links precision instruments requiring EMI resistance (e.g., medical monitors, diagnostic devices)
● Wires control cabinets and short-distance communication lines (e.g., 5G/10GBASE-T applications)
● For high-fidelity audio transmission
For any more information or advice, please contact the office on 0086-18832134509 (WhatsApp/WeChat)
Details

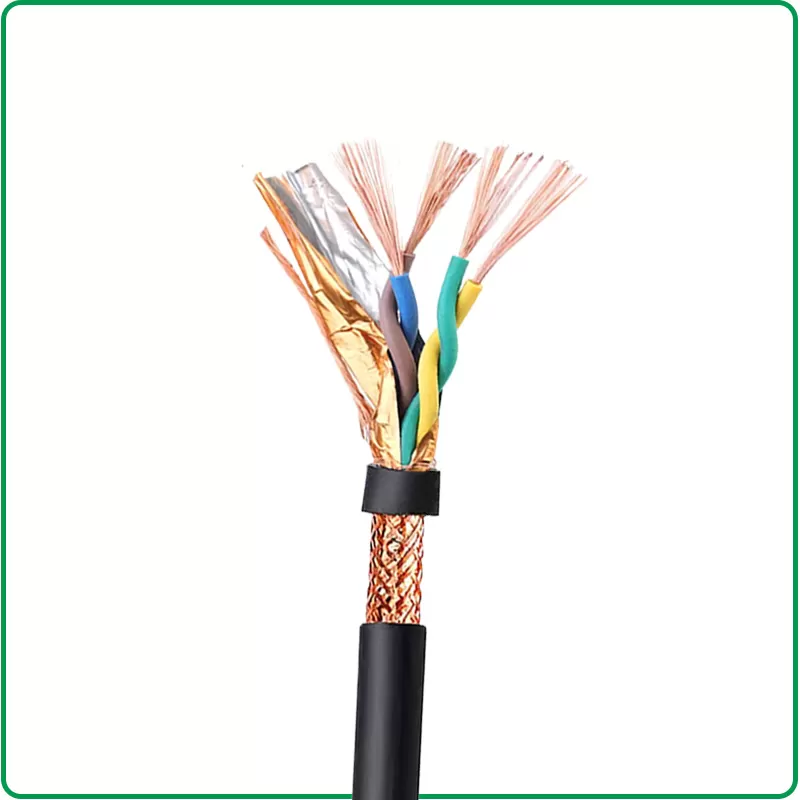

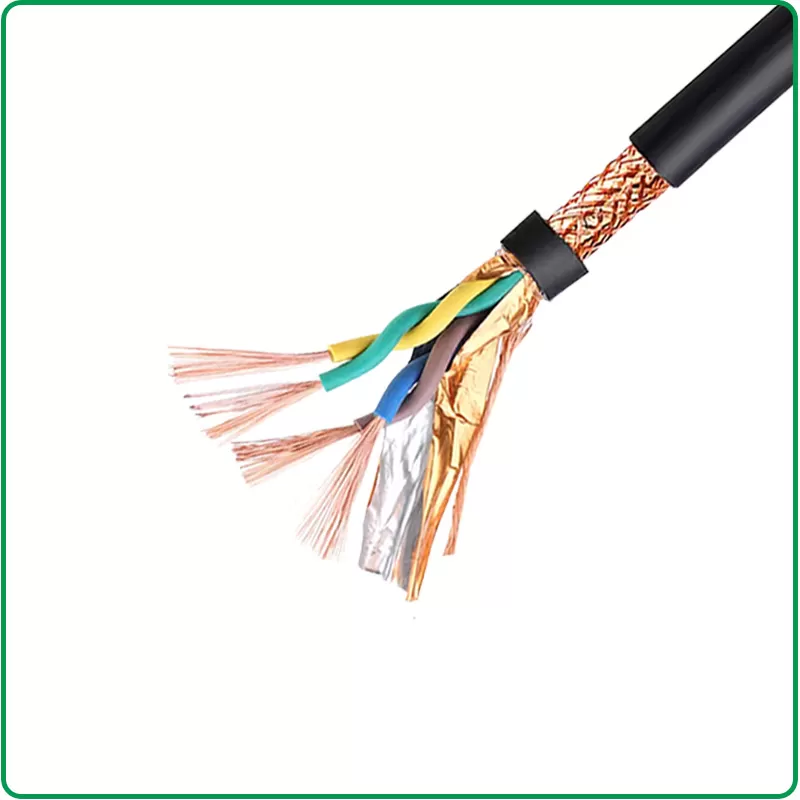

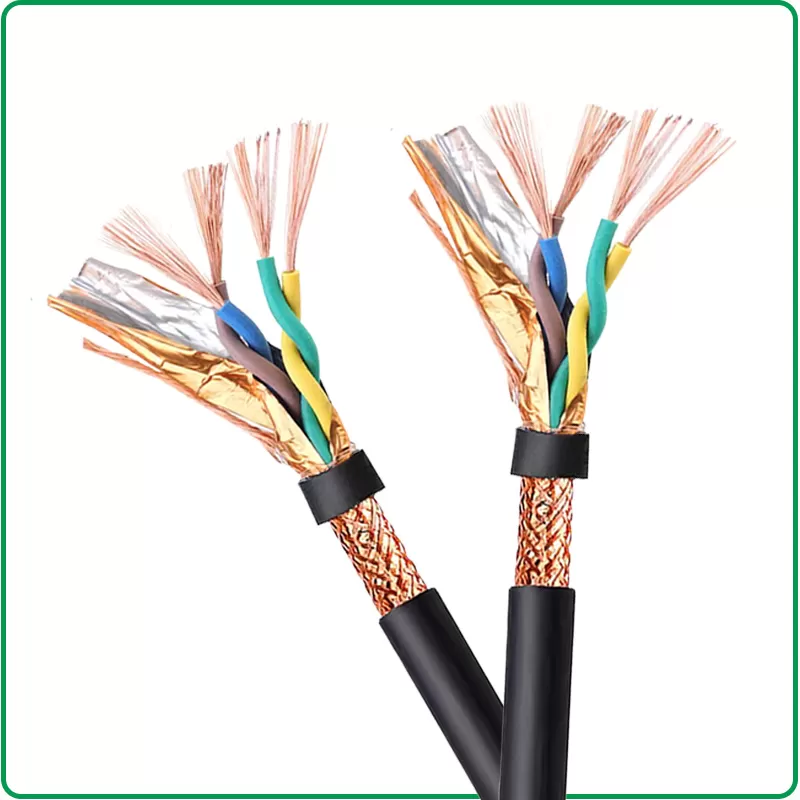

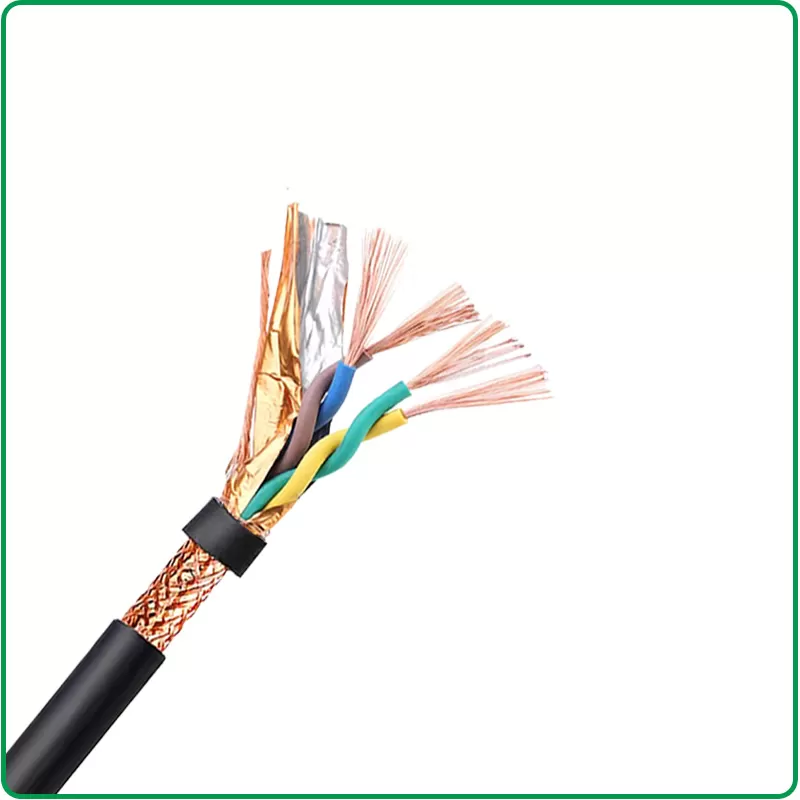

Overview Shielded Twisted Pair Flexible Cable with PVC Sheath is designed for high reliability signal transmission in environments with significant electromagnetic interference (EMI). It integrates twisted pair conductors, copper braided shielding, and a PVC outer sheath, twisted pair structure reduces crosstalk, while copper braided shielding neutralizes external EMI,soft conductors enable easy installation in confined spaces making it ideal for semi-industrial and industrial applications.
CONSTRUCTION
Description: Shielded Twisted Pair flexible cable with PVC Sheath
Conductors: Class5 of plain annealed flexible stranded copper in accordance with IEC 60228
Insulation: Polyvinyl chloride PVC
Shielding: Copper wire braided
Outer Sheath: Polyvinyl chloride PVC
Colour of Sheath: Black
Voltage Rating(Uo/U): 300/300V
Test Voltage: 2KV for 5 minutes
Physical Properties
Maximal operating conductor Temperature: up to 70℃(PVC insulation), up to 90℃(XLPE insulation)
Operating Temperature Range:-5℃(PVC or LSZH sheath); -20℃ (PE sheath)
Short Circuit Temperature(5 seconds maximum duration): 140℃-160℃(PVC insulation);250°C (XLPE insulation)
TECHNICAL DATA
| 300/300V Shielded Twisted Pair Flexible Cable with PVC Sheath | ||||||
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Density of Copper Braided Shielding | Approx.overall Diameter | Approx. weight | Max. DC resistance of conductor (20°C) |
| mm² | mm | mm | % | mm | kg/km | Ω/km |
| 2X0.75 | 0.5 | 0.6 | 80 | 6.9 | 68 | 26 |
| 2X1.0 | 0.6 | 0.6 | 80 | 7.7 | 72 | 19.5 |
| 2x1.5 | 0.6 | 0.8 | 80 | 8.2 | 92 | 13.3 |
| 2x2.5 | 0.7 | 1.0 | 80 | 10 | 134 | 7.98 |
| 2x4 | 0.8 | 1.0 | 80 | 12 | 195 | 4.95 |
| 2x6 | 0.8 | 1.0 | 80 | 13 | 259 | 3.3 |
| 3X0.75 | 0.5 | 0.6 | 80 | 7.1 | 70 | 26 |
| 3X1.0 | 0.6 | 0.8 | 80 | 8.2 | 94 | 19.5 |
| 3X1.5 | 0.6 | 0.8 | 80 | 8.8 | 121 | 13.3 |
| 3x2.5 | 0.7 | 1.0 | 80 | 10.5 | 177 | 7.98 |
| 3x4 | 0.8 | 1.2 | 80 | 12.3 | 255 | 4.95 |
| 3x6 | 0.8 | 1.2 | 80 | 13.6 | 326 | 3.3 |
| 4X0.75 | 0.5 | 0.8 | 80 | 7.8 | 91 | 26 |
| 4X1.0 | 0.6 | 0.9 | 80 | 8.8 | 117 | 19.5 |
